HY-QG-6 Computerized Panel Cutter Machine Crosscut Slitting Edge Trimming Speed Fast

Item No.: 00149
Model: HY-QG-6
Application: Panel Cutting
Brand Name: Infinity Machinery
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set
Price Term: FOB, C&F, CIF (optional)
Time of Delivery: 7~15 working days
Quantity
-
+
Description
Description

HY-QG-6 computerized panel cutter machine is used for crosscut, slitting, and edge trimming the quilted fabric and it usually works in tandem with the quilting machine and rolling device, but the panel cutting machine can also run alone.

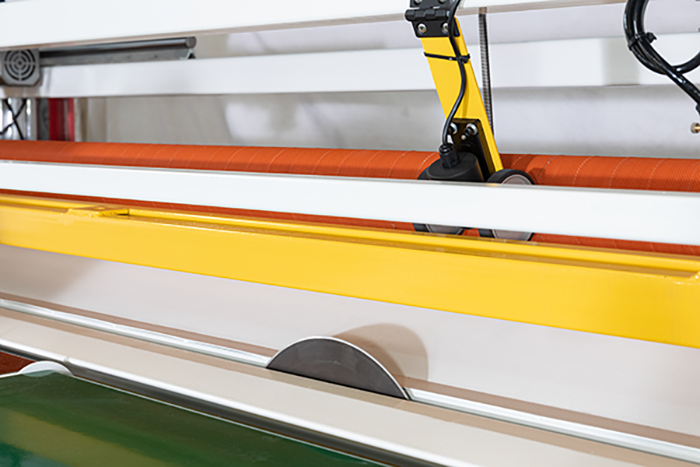

The machine adopts the 5 inch screen touching interface, which is easy to control. The design is pneumatic slitting cutter, which is easy to use. The cutting efficiency is pretty high as the design is advanced, the running speed is fast.




Technical Specification

Model HY-QG-6
 Dimension(L*W*H) 3570*3200*2200mm
X Dimension 2400mm
Max.X dimension 2400mm
Min.X dimension 50mm
Max.Y dimension Max mm
Mix.Y dimension 30mm
Cutting thickness 3-80mm
Cross cutting speed 10m/min
Power 2KW
Voltage 380V/220V 50Hz/60Hz
Weight 800kg

Product Feature
1. 5 inch screen touching interface.
2. Simple operation
3. Pneumatic slitting cutter design
4. Fabricated steel shape
5. Advanced design
6. High efficiency for running and cutting
