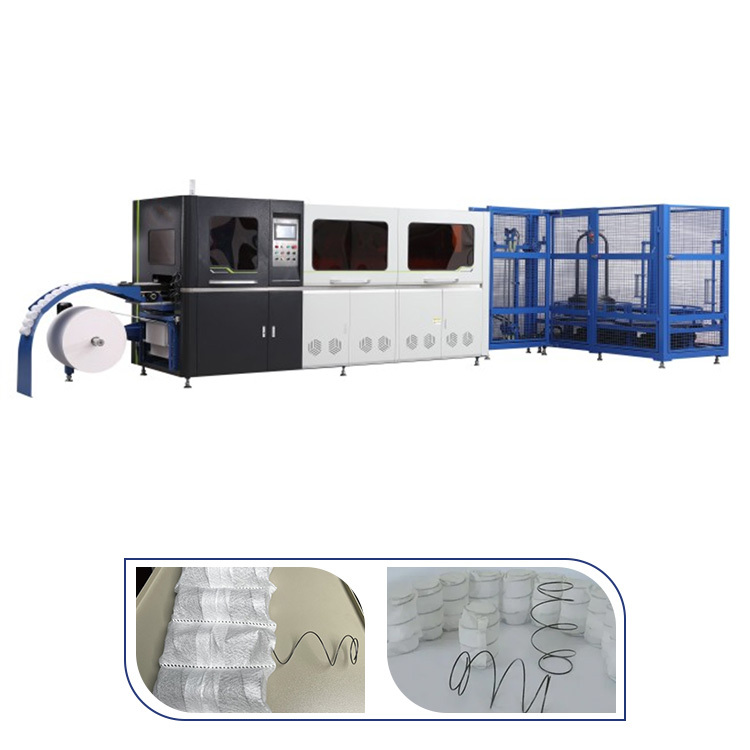

IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine

No.00127
Model: IF-P-120
Application: Spring Producing
Brand Name: Infinity Machinery
Place of origin: Guangzhou city, China
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set Price
Packaging Details: Film Packing/ Wooden
Term: FOB, C&F, CIF (optional)
Payment Terms: L/C T/T
Time of Delivery: 10~20 Working Days
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
  • IF-P-120 Automatic High Speed Double Wire Pocket Spring Machine
Description

The automatic double wire pocket spring machine can be used for producing multi-zone mattress since it adopts double wire input and a fully CNC operation. The parameters of the spring can be stored and set in advance, which can save a lot of time.

The machine is easy to adapt and operate. The program is made by engineers with more than 20 years of experience in the mattress industry. It works in mechanical drive so it can work without air compressor, so it saves power cost, and is more stable.

The machine is small, which can save a lot of space. The springs will be made first, and then do the heat treatment, which makes the springs better quality.

Main parts are made by famous brands, so it is stable and durable. And it has a feature of automatic error detection, the machine will stop automatically when something goes wrong.




Technical Specification

Model IF-P-120
 Work efficienc 120pcs/min
Mechanical principle mechanical drive
Torsion machine cnc torsion head
Spring shape cylindrical and barrel shape springs
Total Power 30KW
Input voltage 3AC 380V
Input current 80A
Frequency 50/60HZ
Thickness of the non-woven 50-90g/m2
Width of the non-woven 300-700mm
Diameter of the wire  Φ1.6- Φ2.4mm

Diameter of the spring core  Φ60- Φ75mm
Height of the pocket spring (80-200mm)
(140-280mm)
Dimension of host machine 3400(L)*1700(W)mm
Weight 3500kg

Product Feature

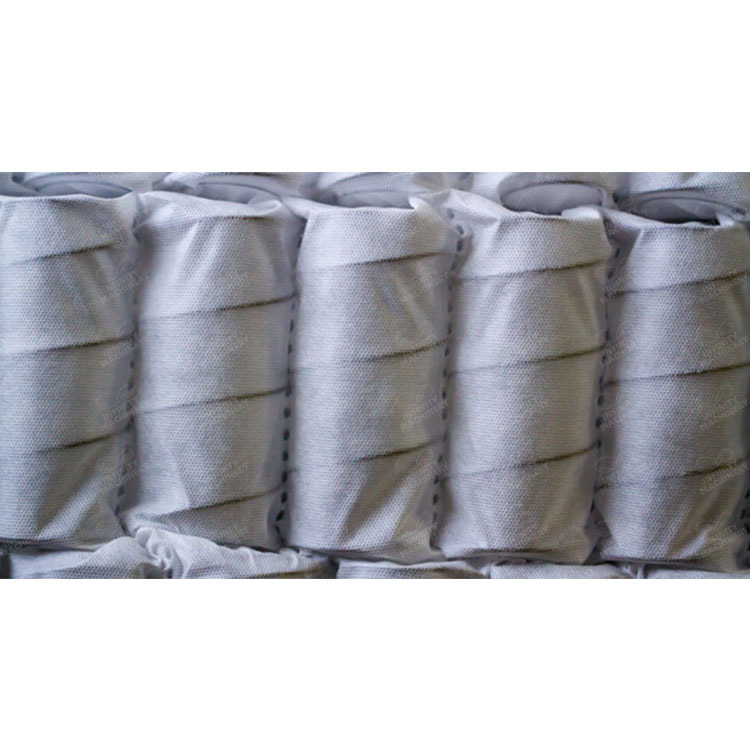

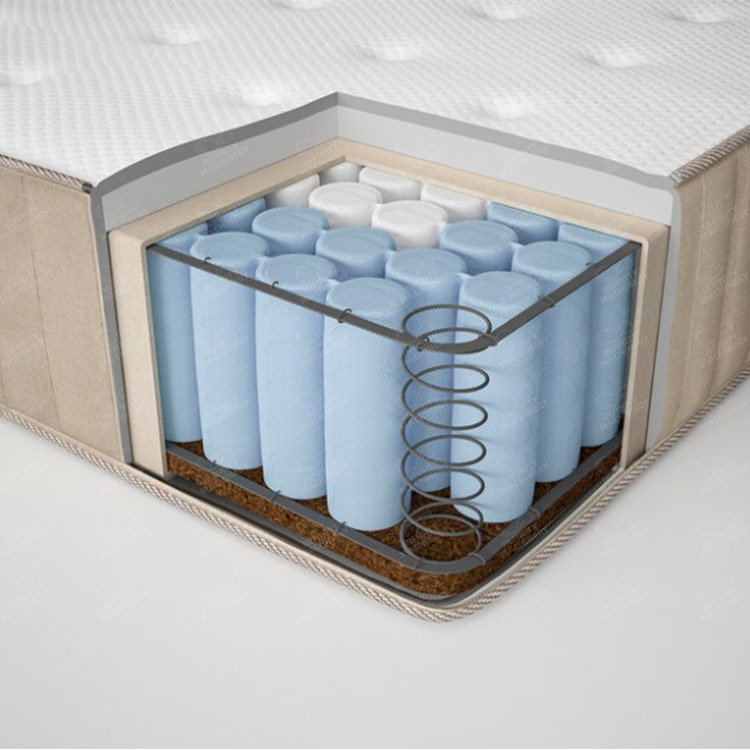

  Double wire input, can make multi-zone mattress
  Fully CNC operation
  The parameter of the spring can be saved, time-saving
  Easy to adapt and operate
  Working without the air compressor, power cost saver
  Space saver
  Stable and durable, high precision
  Automatic shut down when something wrong happens
