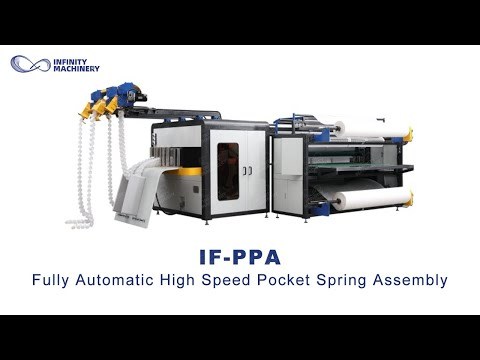

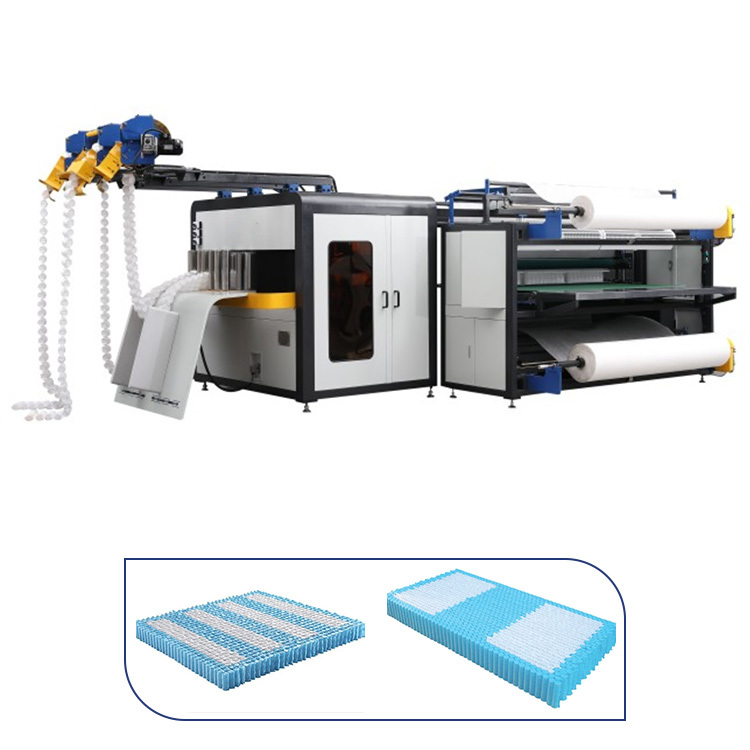

►IF-PPA Fully Automatic High Speed Pocket Spring Assembly production line is a high speed pocket spring assembly machine with high efficiency. 3times faster than normal.
►This machine assembling 14 rows of pocket springs a minute, about 2-3 minutes to produce a mattress. The machine mainly uses mechanical transmission and air pressure demanded is very low.

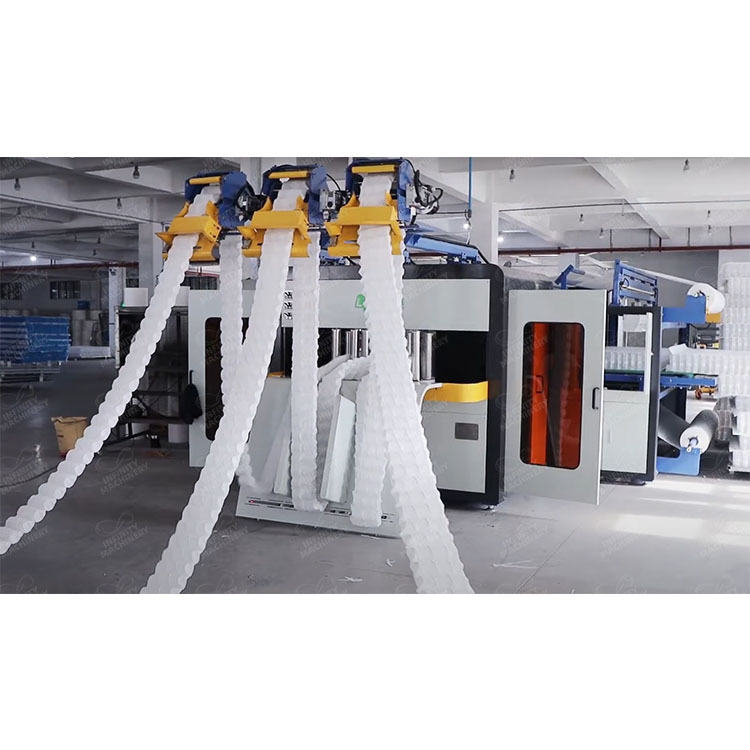

►This machine occupies a very small area to save site cost, it is full CNC, 1 person can operate the automatic production line that including 3 pocket spring machines and this machine.
|
Character |
||
|---|---|---|
| Model | IF-PPA | |
| Production capacity | 12-14 strings/min | |
| Hot melt application system | Nordson (the USA) or Robatech ( Switzerland) | |
| Capacity of glue tank | 15kg/18kg/30kg | |
| Gluing method | Continuous gluing mode/interrupted gluing mode | |
| Control of assembling platform | Electronic control | |
| Possibility of assembling zoned tape | Possible | |
| Possibility of assembling zoning mattress | Possible | |
| Air consumption | 0.3 m³/min | |
| Air pressure | 0.6-0.7 mpa | |
| Power consumption in total | 15KW | |
| Power requirements | Voltage | 3AC 380V |
| Frequency | 50/60 Hz | |
| Input current | 25A | |
| Cable section | 3*10mm2 + 2*6mm2 | |
| Working temperature | +5℃ to +35℃ | |
| Weight | Approx.4500Kg | |
|
Consumption Material Data |
|
|---|---|
| Non-woven fabric | |
| Fabric density | 65~80g/m2 |
| Fabric width | 450-2200mm |
| Inner dia. of fabric roll | Min.60mm |
| Outer dia. of fabric roll | Max.600mm |
| Hot melt glue | |
| Shape | Pellet or pieces |
| Viscosity | 125℃---6100cps 150℃---2300cps 175℃---1100cps |
| Softening point | 85±5℃ |
| Working range(mm) | |
|---|---|
| Spring Waist Diameter | Diameter Φ37-75 mm |
| Pocket Spring Height | 60-250 mm |
√ High speed, high efficiency
√ Save Labor cost
√ Continuous or intermittent gluing is optional, save glue

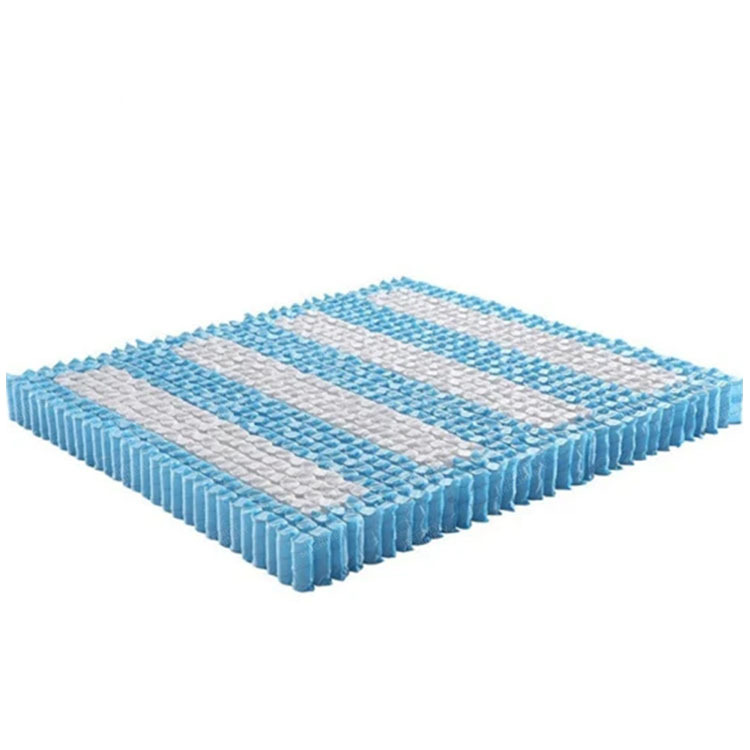

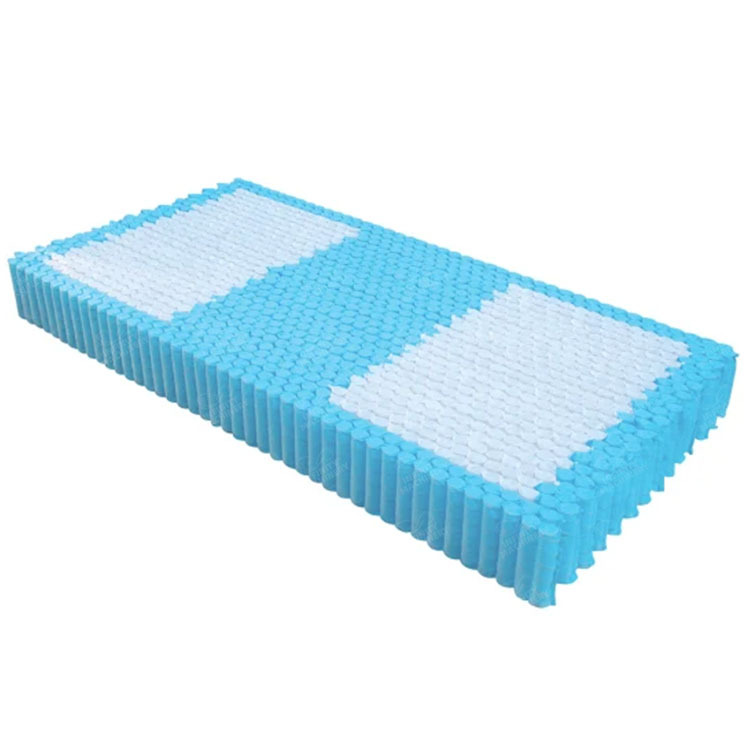

√ Support Multi-Zone mattress production
√ Dimension parameters can be stored and preset
√ With automatic error detection function
√ Easy to learn and operate
√ Double-sided adhesive cloth or single-sided adhesive cloth , also can not adhesive cloth
√ High speed spring machine assembling 14 rows of pocket springs a minute, about 2-3 minutes to produce a mattress. The machine mainly uses mechanical transmission and air pressure demanded is very low.
