The global mattress industry has experienced a significant shift towards pocket spring units, yet the classic Bonnell spring unit (Bonnell spring units) remains an indispensable global standard for high-durability, highly breathable, and cost-effective sleep support. The structural integrity and long-term elasticity of Bonnell spring mattresses are highly valued in hospitality, institutional, and volume-driven retail sectors. However, under traditional, manual manufacturing methods, coiling and assembling Bonnell springs have been plagued by inconsistent wire tension, uneven heat treatment, high re-work rates, and heavy labor overhead. To address these bottlenecks, Infinity Mattress Machinery has engineered a state-of-the-art, high-speed Bonnell spring production ecosystem. Centered on the IF-B100 computerized spring coiling machine, the IF-BA automatic assembling machine, and the fully integrated IF-BPL100/IF-BPL90 production line, this technology empowers mattress manufacturers to scale output, eliminate human error, and achieve an unprecedented return on investment (ROI).
In an increasingly competitive global bedding market, the viability of a mattress factory depends heavily on its ability to produce high-quality spring cores with minimal waste and labor costs. Traditional open-coil manufacturing relied on mechanically driven, cam-based coiling machines and labor-intensive manual assembly benches. These manual processes suffered from serious limitations: mechanical cams wore down, leading to inconsistent coil geometries; manual hand-fed wire inserting and knotting resulted in uneven bed nets; and resistance heating units were slow and inefficient, failing to relieve the immense internal stresses locked within high-carbon steel wire. This lack of stress relief directly causes mattress sagging over time, resulting in high warranty claim rates and damaged brand reputation.
Modern mechatronics has completely redefined what is possible in spring manufacturing. By replacing slow, mechanical cam systems with multi-axis bus-based PLCs and EtherCAT-driven servo motors, manufacturers can achieve near-flawless precision. Coupled with high-frequency induction double heat-treatment systems, modern machines ensure that each spring is thermally stress-relieved instantly. This locks in the coil's shape memory and eliminates sagging. Furthermore, integrating coiling and assembly into a single, continuous, fully automated production line—the IF-BPL100—minimizes material handling, reduces labor requirements by up to 60%, and turns raw high-carbon steel wire into finished, cut-to-size Bonnell spring bed nets within minutes. This deep technical analysis explores the design, parameters, and commercial advantages of Infinity Mattress Machinery's premier Bonnell spring equipment line.

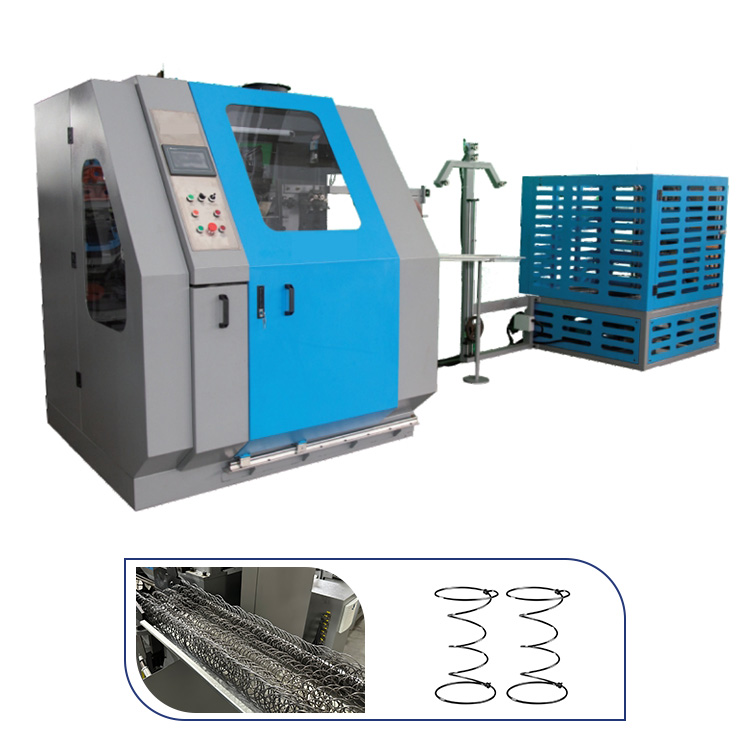

At the foundational stage of any Bonnell spring mattress production line is the spring coiling machine. The IF-B100 High-Speed Bonnell Spring Coiling Machine is engineered to process raw carbon steel wire into high-precision, double-cone springs at a blistering speed of 100 springs per minute. Traditional spring coilers use mechanical cams and basic wire feeds, which suffer from mechanical wear, high maintenance, and speed limitations. The IF-B100, however, utilizes an advanced mechatronic design with an EtherCAT servo control bus and a multi-axis motion PLC controller. This completely eliminates mechanical cams and allows for rapid adjustments of wire feed length and coil geometry directly via a touch screen interface.
Coiling high-carbon steel wire introduces immense mechanical stresses into the wire grain structure. When steel wire is bent rapidly into a helical, double-cone geometry, its crystals are deformed and packed tightly under internal stress. If these springs are assembled into a mattress without thermal treatment, they will suffer from mechanical creep, losing up to 20% of their initial height and compression force under cyclic human body loads. This is the primary root cause of premature mattress sagging. To solve this critical quality issue, the IF-B100 incorporates an integrated high-frequency induction double-heat treatment system. As each newly coiled spring is cut and transferred to the alignment channel, a secondary high-frequency electrical current is pulsed through it. This heats the steel wire to a stress-relief temperature of approximately 280°C to 320°C for a precise fraction of a second. This "double-heat" stress relief locks the spring's grain structure, maximizing tensile performance and fatigue resistance. This ensures that mattresses using these spring units maintain their shape and support for decades.
The physical construction of the IF-B100 highlights its industrial grade. Weighing in at 2700kg, the machine features a heavy-duty cast-iron base plate and frame. This provides a rigid, vibration-free platform that is absolutely necessary for maintaining high dimensional consistency when producing 100 springs per minute. Furthermore, the IF-B100 uses high-grade tungsten carbide forming dies and wire-guiding components. These materials offer exceptional wear resistance, minimizing tooling friction and extending the machine's maintenance interval. When paired with its fully automated centralized lubrication system, the coiler can operate continuously in high-volume, multi-shift factories with minimal mechanical intervention.
Linking or assembling individual Bonnell springs into a coherent, high-integrity "spring bed net" has historically been a massive labor bottleneck. Manual or semi-automatic hand-fed assemblers require massive human effort and suffer from misalignment, uneven knots, and structural twisting (torsion). The IF-BA High-Speed Automatic Bonnell Spring Assembling Machine resolves this through extreme mechatronic automation. It operates at an assembling speed of 300 to 500 spring peaks/min. It is mainly used to perform string combination and helical wire linking of double-cone springs with absolute alignment and zero warp.
The engineering heart of the IF-BA lies in its high-precision helical wire inserting system (穿条与穿簧) and knotting/clamping mechanism. When two adjacent rows of Bonnell springs are aligned, the machine automatically shapes a secondary, smaller-gauge steel wire (Φ1.3 - Φ1.6mm helical wire) into a continuous corkscrew coil. This helical wire is threaded through the top and bottom loops of the springs with micro-millisecond timing. Once threaded, the helical wire is cut to length, and both ends are pneumatically bent and crimped securely over the perimeter spring ring. This mechanical binding locks the entire innerspring grid in a flat, stress-free plane, eliminating structural distortion.
To accommodate the diverse range of spring geometries found globally, the IF-BA features modular, rapid-swap clamping jaw assemblies. Depending on the target end ring diameter, operators can quickly swap the machine's primary jaws to ensure optimal grip during linking:
A noteworthy advantage of the IF-BA is its capability to operate efficiently without a continuous high-capacity compressed air feed. This pure-electric mechatronic setup significantly lowers operational utility costs. It also reduces ambient noise levels, which is highly appreciated by floor workers, and avoids the maintenance and downtime associated with massive factory compressor setups.

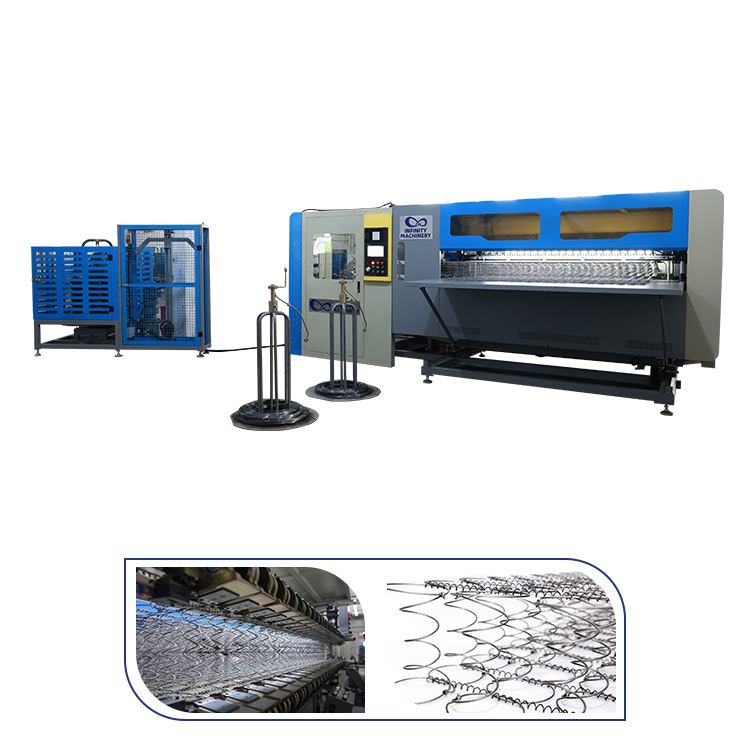

The ultimate goal of modern mattress factories is a fully integrated, "hands-free" or "raw steel wire to completed bed net" manufacturing flow. Manual handling between coiling machines and assembling machines is extremely inefficient and introduces safety risks, physical damages to coiled springs, and massive storage buffer requirements. The IF-BPL100 / IF-BPL90 High Speed Automatic Bonnell Spring Units Production Line addresses this by seamlessly linking multiple computerized high-speed coiling units with a central heavy-duty automatic assembling and knotting machine.
The operational workflow of the IF-BPL100 represents a masterclass in modern mechatronic engineering. High-carbon steel wire is drawn directly from continuous pay-off stands into the IF-B100 coiling section. The coiler shapes the wire into double-cone Bonnell springs, knots both ends, performs immediate secondary induction heat treatment, and aligns them. Rather than dropping them into collection bins, an advanced automatic mechatronic transport and loading arm collects the springs and transfers/inserts them directly into the assembler mechanism in perfect synchronization. The central PLC coordinates this multi-axis handshake in real-time. If the coiler speeds up or slows down, the assembler matches the rhythm dynamically. Once the required grid width and length are reached, the machine automatically cuts, coils, and clamps the helical wires, ejecting a completed, structurally unified Bonnell spring bed net ready for downstream packing.
A major engineering advantage of the IF-BPL100 line is that operators can control the orientation and direction of the spring knots via the touch screen. When mattresses undergo heavy compression and roll-packing (such as for bed-in-a-box shipping), poorly positioned or protruding knots can pierce the protective fabric layer, slice into adjacent comfort foam sheets, or pierce the outer cover fabric. By rotating and aligning the knots inward or along specific planes, the IF-BPL100 ensures that the finished spring grid is perfectly suited for compressed roll-packing, protecting downstream materials.
While the upfront capital expenditure of a fully integrated automatic production line is higher than that of individual stand-alone machines, the long-term economic returns are profound. For a mid-to-large-scale mattress factory producing 80 to 100 finished spring bed nets per shift, transitioning from manual/semi-automatic setups to the fully automated IF-BPL100 line completely restructures factory unit economics, operating margins, and market competitiveness.
To understand this commercial value, let us analyze a typical production model:
Let us compare a factory with a target output of 100 Queen-size (1500 x 2000 mm) Bonnell spring bed nets per 8-hour shift:
This labor saving alone recovers the complete capital investment of the IF-BPL100 line within 12 months of installation, making it one of the most compelling mechatronic upgrades available in modern industrial mattress machinery.
Beyond labor savings, material yield improvement is a major contributor to profitability. Carbon steel wire represents a substantial recurring expense in spring manufacturing. Manual or semi-automatic spring assemblers frequently suffer from misalignment, resulting in twisted grids, defective knots, and high steel scrap rates—often reaching 4% to 6% of total wire consumed. The mechatronic precision of the IF-B100 and IF-BA limits wire scrap rate to less than 0.5%, significantly reducing raw material waste. At an annual wire consumption of several hundred tons, a 5% waste reduction saves thousands of dollars in raw steel costs.
Additionally, consistency of the final product protects brand reputation. Undetected defects in manually assembled spring nets—such as loose helical wires, unknotted spring ends, or uneven coil heights—can result in structural failures once the mattress is in service, leading to expensive product returns, customer warranty claims, and negative retail reviews. The IF-BPL100 ensures 100% uniformity in every knot, loop, and stress-relieved coil. This high mechanical reliability is especially critical for export-focused mattress manufacturers who must comply with stringent international standards and deliver defect-free bulk shipments over thousands of miles.
Q: How does the high-frequency induction heating system of the IF-B100 compare to traditional resistance heating?
A: Traditional electric resistance heating requires direct physical contact, which can cause spark damage to the steel wire and results in uneven heat distribution. The IF-B100's high-frequency induction heating is non-contact. It uses a high-frequency electromagnetic field to heat the spring wire uniformly from within, ensuring consistent metallurgical stress relief, lower power draw, and zero physical wire defects.
Q: What grades of carbon steel wire are recommended for optimum coiling on the IF series?
A: We recommend standard cold-drawn high-carbon spring steel wire complying with DIN 17223 (Class B or C) or ASTM A227 specifications. The optimal carbon content should range from 0.60% to 0.85%, with a tensile strength between 1600 and 1900 N/mm². Using wire within these parameters ensures clean, consistent knotting and guarantees long-term spring resilience.
Q: How does the IF-BA maintain zero structural distortion in large mattress grids?
A: The IF-BA uses heavy-duty, CNC-machined jaws (available from 68mm to 98mm) that clamp the adjacent end loops of Bonnell springs in exact spatial alignment. While clamped, the high-speed helical nozzle inserts the connecting wire. This mechanical clamping eliminates twisting and ensures that the finished grid remains perfectly flat, with no diagonal distortion or height variance.
Q: Can the IF-BPL100 line handle various mattress sizes without extensive mechanical re-tooling?
A: Yes. The IF-BPL100 features a fully digital CNC control system with recipe memory. From the touch screen interface, operators can change the grid size (Single, Double, Queen, King, or custom dimensions), adjust row and column counts, and fine-tune feeding rates. This digital transition reduces changeover time to under 10 minutes, eliminating physical tool changes.
Q: What are the main site and utility requirements for installing an IF-BPL100 line?
A: The IF-BPL100 line requires a flat, reinforced concrete floor of at least 150mm thickness, with an operating footprint of approximately 12 x 6 meters to allow for material pay-off stands and safe clearance. It requires three-phase 380V industrial power (415-480V or 220V are optional), a stable ground connection, and a dry, filtered compressed air supply at 0.6 - 0.8 MPa.
Q: Why is knot direction customization on the IF-BPL100 line so important for roll-packing?
A: In roll-packed beds, the spring core is compressed under up to 100 tons of force and rolled tightly. If the wire knots point outward, they can pierce through the outer fabrics or tear the comfort foam layers. The IF-BPL100 allows operators to rotate and align the knots inward, protecting downstream materials and ensuring that mattresses can be safely roll-packed without structural damage.
Partner with Infinity Mattress Machinery to modernize your manufacturing facility. Contact our engineering team today for a tailored factory layout design, full mechatronic ROI analysis, or to request a live demonstration of our IF-B100, IF-BA, and IF-BPL100 lines.
