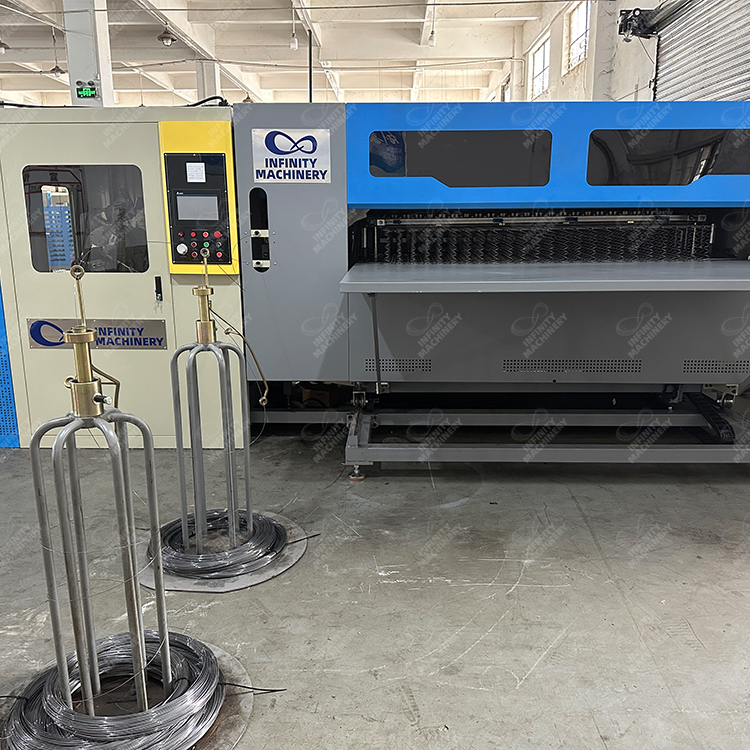

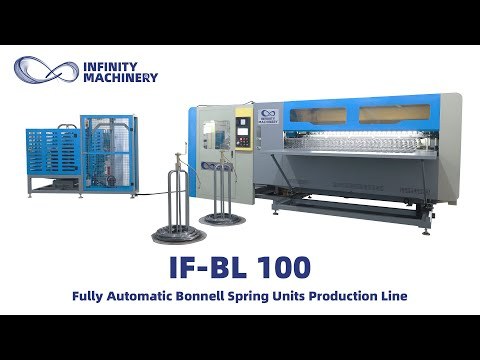

IF-BPL High Speed Automatic Bonnell Spring Production Line

Item No.: 00132
Model: IF-BPL
Application: Spring production line
Brand Name: Infinity Machinery
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set
Price Term: FOB, C&F, CIF (optional)
Time of Delivery: 7~15 working days
Quantity
-
+
Description
Description

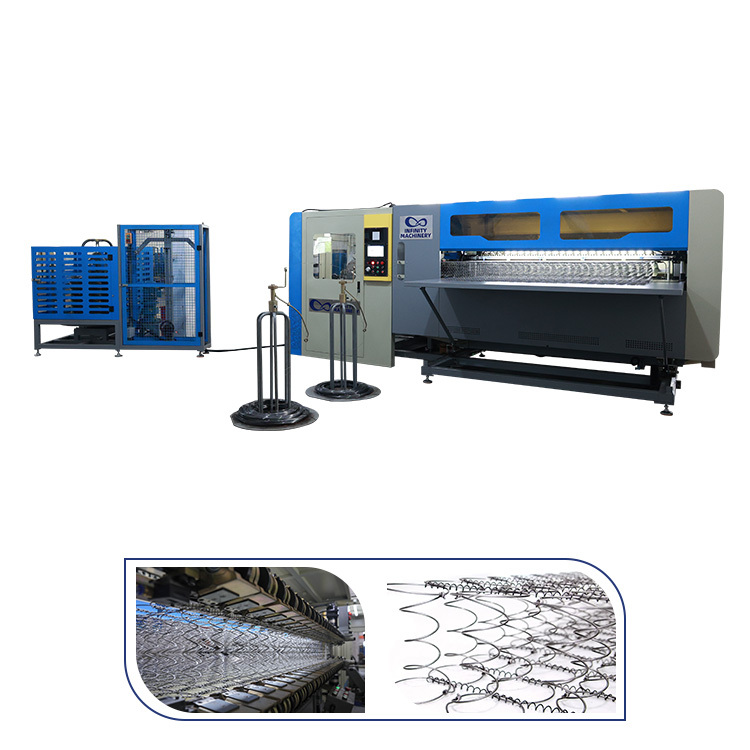

IF-BPL High speed automatic bonnell spring production line is the latest bonnell spring production line for producing "Bonnell" type innerspring units. It can produce innerspring units directly from the wire.

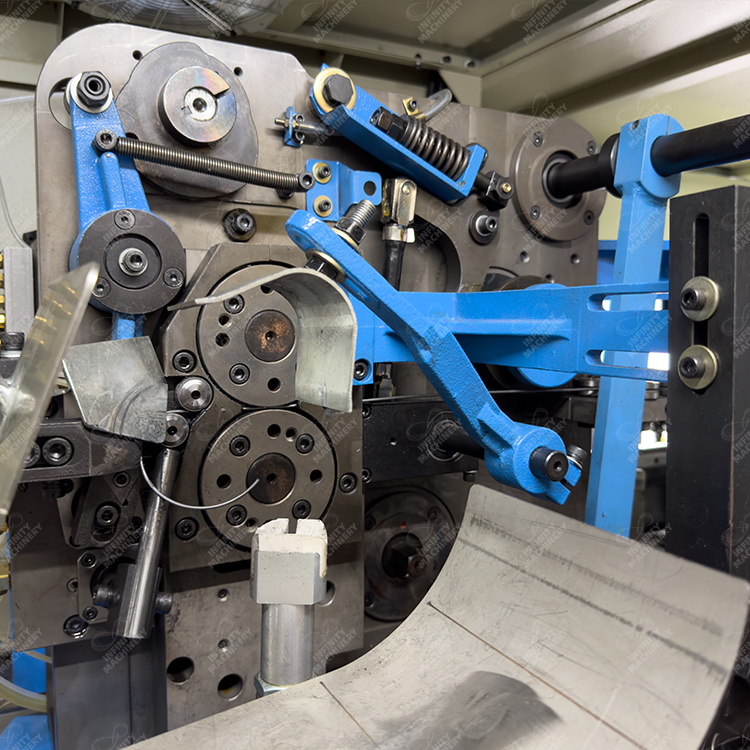

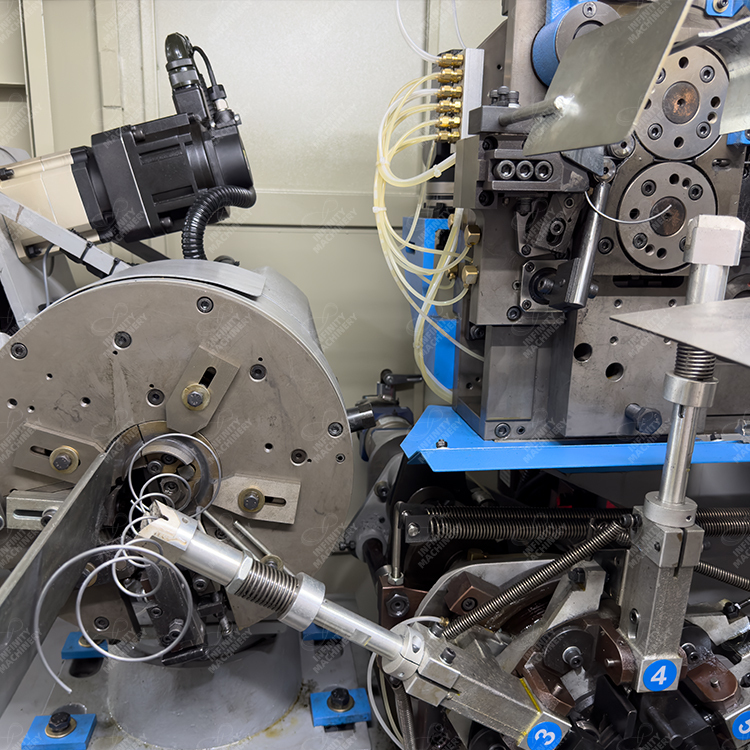

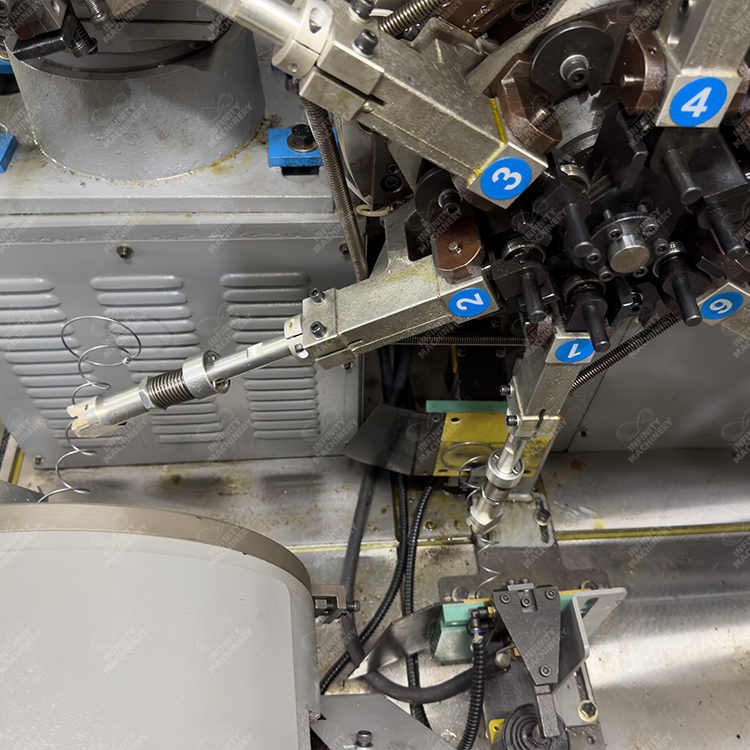

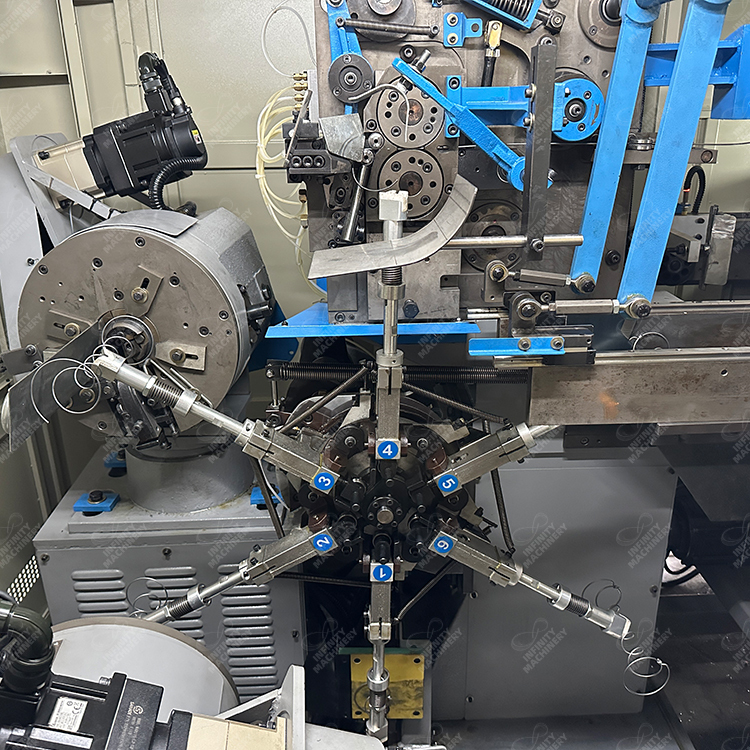

Firstly the steel wire is coiled to a spring, and then will be transferred and inserted into the assembler by the automatic system. After this, the upper and lower springs are coiled together at the same time and helical wire is coiled, cut, and clamped at both ends automatically. When a unit is finished, it could be ejected automatically, which is a labor force saver.

Also, workers can adjust the direction of the spring knots, which makes the rolling packing a lot easier.




Technical Specification

Model IF-BPL
 Spring type Bonnell
Capacity 80 sheets/8 hours(1800mm*2000mm)
Maximum width 2M
Spring end ring Φ65-Φ74mm,Φ75-Φ89mm, Φ90-Φ95mm
Spring stell wire gauge Φ1.9-Φ2.4mm
Height wire gauge Φ1.3-Φ1.6mm
Spring height 80-200mm(<80mm on request)
Convolutions 4-7 Turns
Total power 15KVA
Weight Net Approx: 5600KG
Power requirement 380V, 3 Phase, 50-60Hz(Option: 415V-480V, 220V)


Product Feature

1. Latest production line for bonnell springs
2. Produce the bed net directly from the wire
3. Time saver
4. Labor force saver
5. Automatically cut, coil, clamp the springs
6. Ejected from the machine automatically
