The global mattress industry has undergone a profound transformation over the past decade, driven by consumer demand for superior sleep quality, zoned body support, and individualized comfort profiles. At the heart of this revolution lies the pocket spring — an individually encased coil system that delivers unparalleled motion isolation, pressure point relief, and durability compared to traditional open-coil Bonnell springs. Today, pocket spring mattresses account for the dominant share of the premium mattress market, and the production equipment behind these springs has evolved into sophisticated, high-speed mechatronic systems. Infinity Mattress Machinery's IF-P180 series and IF-PPA assembly line represent the pinnacle of this engineering evolution, offering mattress manufacturers a complete, scalable production ecosystem from raw spring wire to finished assembled mattress cores.
The pocket spring has become the undisputed core technology in premium mattress construction, prized for its ability to deliver independent coil response — each spring moves independently, wrapping around the sleeper's body contours without disturbing adjacent spring zones. Unlike Bonnell or continuous coil systems where wire connections transmit motion across the entire mattress surface, pocket springs are individually encased in high-durability non-woven fabric pockets and ultrasonically sealed, creating truly independent suspension points. This fundamental engineering advantage translates directly into measurable commercial value: mattress manufacturers using pocket spring technology command significantly higher price points, enjoy lower warranty claim rates, and achieve stronger brand differentiation in competitive markets.
From a production engineering perspective, pocket spring manufacturing is a multi-stage process requiring precision wire feeding, spring coiling, heat treatment for shape setting, fabric wrapping and ultrasonic sealing, spring string formation, and final assembly into mattress cores. Each stage presents its own set of engineering challenges — wire tension consistency, coil diameter tolerance, fabric feed synchronization, sealing integrity, and assembly accuracy all directly impact final product quality. Infinity Mattress Machinery has addressed these challenges through decades of continuous R&D, resulting in the IF-P180 series of spring forming machines and the IF-PPA automatic assembly line that together form a fully integrated, high-throughput production system.
The global market for pocket spring mattresses continues to expand at an annual compound growth rate of approximately 14%, driven by rising middle-class incomes in Asia-Pacific, Latin America, and the Middle East, as well as the ongoing shift from traditional innerspring to hybrid and all-pocket-spring constructions. For mattress manufacturers looking to capture this growth, investing in high-speed, automated pocket spring production equipment is no longer a competitive advantage — it is a competitive necessity. The decision between single-wire and dual-wire machines, compact versus full-size assembly lines, and semi-automated versus fully integrated production workflows directly determines production capacity, cost per unit, and ultimate profitability.

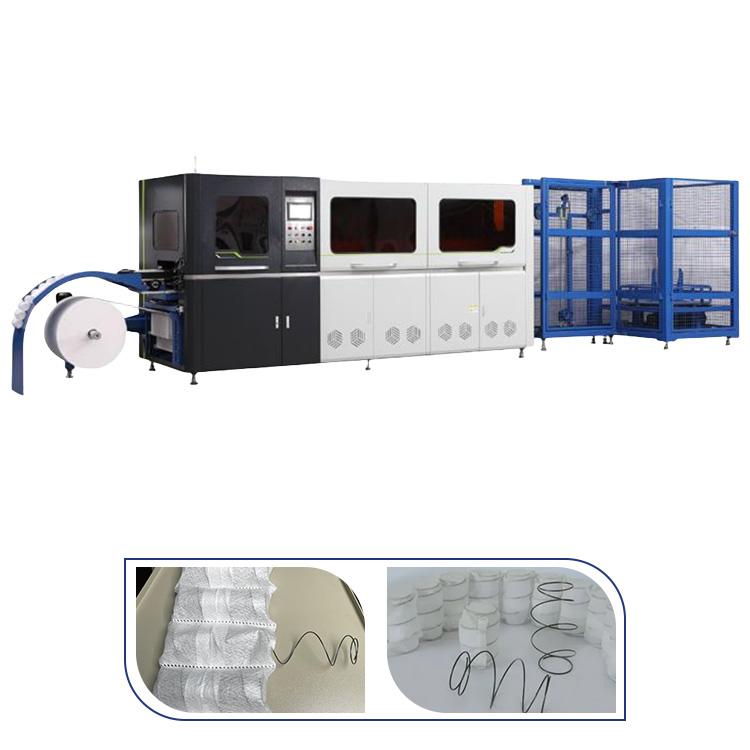

The IF-P180-1 is Infinity Mattress Machinery's flagship single-wire pocket spring forming and wrapping machine, engineered for manufacturers who prioritize production flexibility, zoning precision, and consistent coil quality. As a single-wire input system, it processes one continuous strand of spring wire at a time through the complete forming, heat treating, fabric wrapping, and ultrasonic sealing cycle. This design philosophy enables exceptional control over every individual spring produced — each coil receives identical treatment in terms of wire tension, coil diameter, and sealing parameters, resulting in highly uniform spring strings with predictable compression characteristics.
One of the most significant engineering features of the IF-P180-1 is its integrated heat treatment system. After each spring is formed by the coiling mechanism, it passes through a controlled heat treatment station that sets the spring's shape memory and relieves internal wire stress. This heat treatment process is absolutely critical for pocket spring quality — without proper stress relief, springs will gradually lose their initial compression force over time, leading to premature sagging and customer complaints. The IF-P180-1's heat treatment system is designed with adjustable parameters that accommodate different spring heights, wire gauges, and hardness specifications, giving manufacturers the flexibility to produce multiple spring profiles on a single machine without tooling changes.
The machine also features an advanced non-woven fabric splicing device that significantly reduces material waste and labor overhead. During production, as one roll of non-woven fabric nears its end, the splicing mechanism automatically attaches the beginning of the next roll without stopping the production process. This seamless roll-to-roll transition eliminates the downtime that would otherwise be required for manual fabric changes and reduces fabric waste to near zero. Additionally, the IF-P180-1 is equipped with multiple fault detection sensors strategically positioned throughout the production flow — wire breakage sensors, fabric tension monitors, ultrasonic seal integrity detectors, and coil height measurement systems — that automatically halt the machine and alert operators if any parameter drifts outside acceptable tolerance, minimizing scrap and preventing cascading defects.
For manufacturers targeting maximum production throughput, the IF-P180-2 dual-wire pocket spring machine represents the ultimate high-speed production solution. As the name indicates, this model processes two independent spring wire strands simultaneously through two parallel forming, heat treating, and wrapping stations, effectively doubling the output of the single-wire IF-P180-1 while maintaining the same uncompromising quality standards. The dual-wire architecture is not merely a scaled-up version of the single-wire design — it incorporates a completely re-engineered CNC control system, dual independent servo motor drives, and synchronized fabric feeding mechanisms to ensure perfect timing between the two production lanes.
The IF-P180-2 is equipped with a full CNC (Computer Numerical Control) operating system that stores and recalls production parameters for dozens of different spring specifications. When switching between mattress models — for example, from a firm single-zone hotel mattress to a soft three-zone orthopedic mattress — the operator simply selects the stored recipe from the CNC interface, and the machine automatically adjusts coil diameter, wire tension, spring height, fabric feed rate, ultrasonic sealing power, and heat treatment temperature across both production lanes. This parameter memory and recall capability dramatically reduces changeover time between production runs, enabling manufacturers to operate flexible, just-in-time production schedules without sacrificing throughput.
The dual-wire configuration also enables sophisticated multi-zone production strategies. Because each lane can be independently configured, manufacturers can produce, for example, a three-zone spring string where the shoulder zone springs (soft) come from lane one with a lower wire gauge and the lumbar zone springs (firm) from lane two with a higher wire gauge, all in a single synchronized production pass. This eliminates the need for post-production zoned assembly and ensures that each spring zone is perfectly aligned and integrated. With a larger footprint of 7000 x 2400 x 2200 mm and a gross weight of 4,200 KG, the IF-P180-2 is designed for dedicated high-volume production facilities where throughput maximization is the primary operational goal.
Not every mattress manufacturing facility has the floor space to accommodate the full-size P180 machines. Recognizing this market reality, Infinity Mattress Machinery developed the IF-P130 series — a compact but highly capable line of pocket spring machines designed for manufacturers with limited production floor areas, smaller batch requirements, or those just entering the pocket spring mattress market. Despite their reduced footprint, the IF-P130 machines incorporate the same core engineering technologies — heat treatment, ultrasonic sealing, multi-zone production capability, and fault detection — as their larger P180 counterparts, ensuring that compact size does not come at the expense of quality or features.
The IF-P130-1 is the single-wire compact model, occupying a footprint of just 6000 x 1700 x 2200 mm with a gross weight of 4,000 KG. It accepts non-woven fabric widths from 380-700 mm and consumes an average of 22 KWH — roughly 15% less power than the P180 series, making it an economical choice for operations where energy costs are a primary concern. The machine delivers the same heat treatment and fabric splicing capabilities found in the P180-1, ensuring consistent spring quality and minimal material waste. With the same CNC parameter management interface, operators can quickly switch between spring specifications for different mattress models, supporting flexible production scheduling even in a compact form factor.

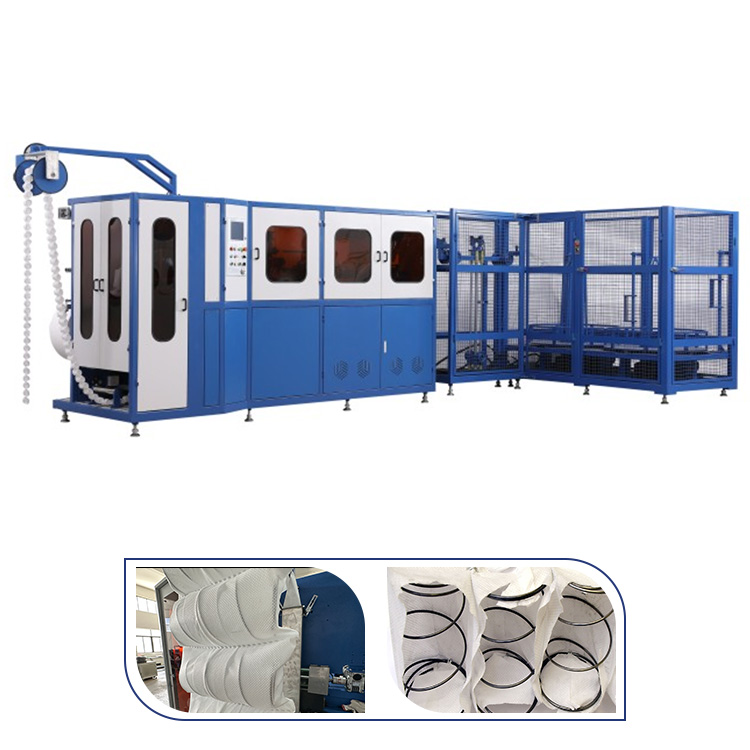

The IF-P130-2 is the dual-wire variant of the compact series, offering substantially higher throughput than the single-wire P130-1 while still maintaining the reduced footprint. At 6000 x 2400 x 2200 mm and 4,500 KG, it fits into production floors that cannot accommodate the full-size P180-2 but still require dual-wire production capacity. A particularly noteworthy design choice is the elimination of the air compressor requirement. The IF-P130-2 operates entirely on electric servo drives rather than pneumatic actuators, which not only reduces the machine's footprint (no need for a separate compressor station) but also significantly lowers electricity bills by eliminating the continuous power draw of an air compressor. This makes the IF-P130-2 an exceptionally cost-efficient choice for manufacturers in regions with high industrial electricity tariffs.
While the IF-P180 series excels at forming individual pocket springs into continuous strings, the final step in mattress core production — assembling those spring strings into a complete mattress core — has historically been a labor-intensive bottleneck. Traditional semi-automatic assembly processes require teams of workers to manually lay, align, glue, and stack spring rows, with typical assembly rates of 5-7 rows per minute. The IF-PPA (Pocket Spring Fully Automatic Assembly Line) shatters this bottleneck entirely, achieving an extraordinary assembly rate of 18-20 rows per minute — approximately three times faster than conventional semi-automatic systems.
The IF-PPA represents a masterclass in industrial automation design. The system accepts pre-formed pocket spring strings from the IF-P180 or IF-P130 series machines and automatically executes the entire assembly sequence: string alignment and positioning, hot melt adhesive application, row compression and stacking, finished mattress core ejection, and core dimension inspection. Each of these stages is coordinated by a central PLC control system that synchronizes servo motors, pneumatic actuators, sensor arrays, and conveyor mechanisms with millisecond precision. The result is a fully integrated, hands-off production flow that transforms raw spring strings into completed, inspected mattress cores without any manual intervention.
The economic impact of the IF-PPA on a mattress manufacturing operation is profound. With an average assembly speed of 14 rows per minute (conservative sustained rate, compared to the peak 18-20 rows per minute), and a power consumption of just 15 KWH for the entire system (3-phase 380V), the IF-PPA reduces assembly labor requirements by approximately 75%. In real terms, an operation that previously required 8-10 workers per shift for manual assembly can be operated by just 2-3 machine attendants. With an annual labor cost saving that typically recovers the machine's capital investment within 14 months, the IF-PPA delivers one of the fastest ROI payback periods in the mattress manufacturing equipment industry.
While the IF-PPA is designed for high-volume, continuous production environments, Infinity Mattress Machinery also offers the IF-PA semi-automatic pocket spring assembly machine as a cost-effective solution for smaller manufacturers, custom mattress producers, and operations that require production flexibility over raw speed. The IF-PA operates at approximately 7 rows per minute with a compact 4 KW power draw and a footprint of just 3300 x 1650 x 1800 mm — roughly half the size of the full-automatic PPA. This small footprint allows manufacturers to integrate the IF-PA into existing production floors without major facility modifications or reconfiguration.
The semi-automatic design of the IF-PA strikes an optimal balance between mechanized precision and human flexibility. The machine automatically aligns and positions each spring row, applies hot melt adhesive in precisely controlled patterns, and compresses the row into the mattress stack. However, the operator manually feeds the spring strings into the machine and manually inspects each assembled row before the next cycle begins. This human-in-the-loop approach is particularly valuable for custom or non-standard mattress sizes, specialty zoning patterns, and prototype development where production volumes do not warrant full automation but quality consistency remains paramount. For businesses that anticipate future growth, the IF-PA serves as an excellent entry-level assembly solution that can later be supplemented or replaced by the IF-PPA as production volumes scale.

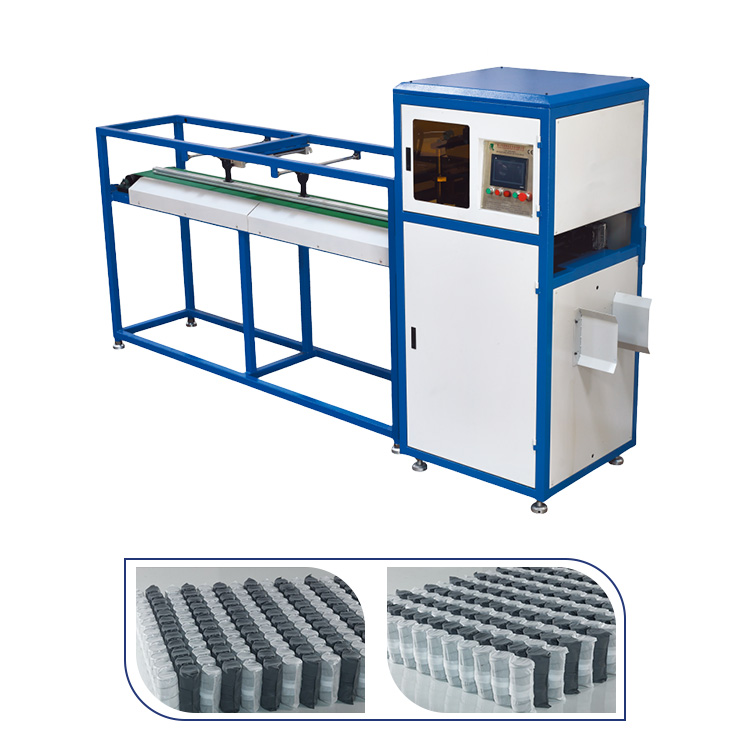

The IF-PC pocket spring cutting machine serves as the essential post-processing station in the complete pocket spring production line. After the IF-PPA has assembled the continuous spring strings into a mattress core, the IF-PC performs two critical functions: precision cutting of the assembled spring strings to exact mattress dimensions, and edge finishing to ensure clean, secure pocket seals at the mattress perimeter. With an operating speed of approximately 25 cutting cycles per minute and a remarkably low power consumption of just 1 KW, the IF-PC is designed for continuous, energy-efficient operation throughout the production day.
The IF-PC's cutting mechanism employs a heated blade system that simultaneously cuts through the non-woven fabric and thermally seals the cut edge, preventing fraying or unraveling of the pocket fabric. This dual-action cutting and sealing process is critical for maintaining the structural integrity of the mattress perimeter, particularly for mattresses that will undergo roll-packing or compression packaging where the edge seals are subjected to extreme mechanical stress. The machine is equipped with adjustable cutting guides that accommodate mattress widths from single to king-size, with changeover times of less than 60 seconds between different size configurations.
With its compact dimensions of 4500 x 850 x 2050 mm and a net weight of just 680 KG, the IF-PC can be positioned directly in line with the IF-PPA output conveyor, creating a seamless flow from assembled mattress core to finished, cut-to-size product ready for the next manufacturing stage (quilting, tape edging, or packaging). This inline integration capability is a key advantage for manufacturers seeking to build a fully automated production line, as it eliminates the need for manual material handling between the assembly and cutting stations, further reducing labor requirements and minimizing the risk of product damage during transfer.
The true power of Infinity Mattress Machinery's pocket spring equipment ecosystem is realized when individual machines are combined into a complete, integrated production line. The optimal production workflow follows a logical sequence that transforms raw spring wire and non-woven fabric into finished, cut-to-size mattress cores with minimal handling and maximum throughput. Understanding this integrated workflow is essential for manufacturers planning new production facilities or upgrading existing operations.
High-speed dual-wire pocket spring string production with CNC parameter control. Output feeds directly to the assembly line conveyor.
Receives spring strings from P180-2, automatically lays, glues, compresses, and stacks rows at 14 rows/min sustained. 75% labor reduction.
Inline cutting and thermal edge sealing at 25 cycles/min. Finished mattress cores exit ready for quilting or packaging.
Finished cores feed into quilting machines, tape edge machines, and compression roll-pack systems for complete mattress production.
A complete pocket spring production line configured with the IF-P180-2, IF-PPA, and IF-PC can achieve an estimated daily output of 400-500 standard twin-size mattress cores (operating on a single 8-hour shift basis), with total labor requirements of just 4-5 operators for the entire line. This represents a productivity improvement of approximately 400% compared to traditional semi-automatic production methods requiring 15-20 workers. The total capital investment for the integrated line is typically recovered within 14-18 months through labor savings, reduced material waste, and increased production throughput.
For manufacturers just entering the pocket spring market or those with lower initial production requirements, an alternative entry-level configuration using the IF-P130-1 single-wire machine paired with the IF-PA semi-automatic assembly and IF-PC cutting station offers a more accessible investment pathway. This configuration can produce 100-150 cores per day with 6-8 operators, and can be upgraded incrementally as production scales - adding a second IF-P130-2 dual-wire machine or replacing the IF-PA with the IF-PPA as volume demands grow.
Q: What is the difference between single-wire and dual-wire pocket spring machines?
A: Single-wire machines like the IF-P180-1 process one spring wire strand at a time, offering maximum control and flexibility for multi-zone production. Dual-wire machines like the IF-P180-2 process two independent wire strands simultaneously through parallel forming stations, doubling production throughput. Dual-wire machines also enable simultaneous production of different spring zones (e.g., soft shoulder zone springs on one lane and firm lumbar springs on the other) in a single synchronized pass.
Q: What is the recommended maintenance schedule for the IF-P180 series machines?
A: Daily preventative maintenance includes checking wire tension, cleaning ultrasonic horn tips, inspecting non-woven fabric path for debris, and verifying heat treatment temperature calibration. Weekly maintenance includes lubricating all linear guide rails and bearings, inspecting electrical connections for signs of wear, and checking pneumatic fittings (on models with compressed air components) for leaks. Major maintenance (servo motor bearing replacement, ultrasonic generator calibration) is recommended every 6 months or 3,000 production hours, whichever comes first.
Q: Can the IF-PPA assembly line handle pocket spring strings from other manufacturers' spring forming machines?
A: The IF-PPA is optimized for pocket spring strings produced by Infinity Mattress Machinery's IF-P180 and IF-P130 series machines, as the string dimensions, pocket spacing, and sealing parameters are precisely matched. While the IF-PPA can be reconfigured to accept strings from other manufacturers, this requires customization of the alignment guides, conveyor spacing, and PLC parameters. We recommend consulting with our engineering team to evaluate compatibility before purchasing third-party spring forming equipment for integration with the IF-PPA.
Q: What is the typical power infrastructure required for the complete production line?
A: The IF-P180-2 and IF-PPA require three-phase 380V industrial power supply. The total power consumption for a complete line (IF-P180-2 + IF-PPA + IF-PC) is approximately 42 KWH under continuous production load. We recommend a dedicated electrical panel with sufficient breaker capacity (minimum 100A at 380V 3-phase) and a stable earth ground. The IF-P130 series and IF-PA machines can also operate on 220V three-phase in regions where 380V is not available, but please confirm your local power specifications with our sales team during the quotation process.
Q: What spring wire gauges and coil diameters are supported by the IF-P180 series?
A: The IF-P180 series supports spring wire gauges ranging from 1.4 mm to 2.4 mm (SWG 15 to SWG 11 equivalent), coil diameters from 48 mm to 75 mm, and spring heights from 80 mm to 200 mm. The machines can accommodate both cylindrical and hourglass (barrel) coil profiles. The CNC parameter system stores individual settings for each combination, allowing rapid changeover between different spring specifications in under 5 minutes.
Q: Does Infinity Mattress Machinery provide installation, training, and after-sales support?
A: Yes. Every machine purchase includes on-site installation and commissioning by a certified Infinity engineer, a comprehensive 5-day operator training program covering machine operation, parameter programming, preventative maintenance, and troubleshooting, and a 12-month warranty on all mechanical and electrical components. After-sales support includes 24/7 remote technical assistance via phone and video call, a dedicated spare parts warehouse with next-day shipping for critical components, and optional annual maintenance contracts for facilities without in-house engineering teams.
Q: Can the production line be integrated with existing mattress quilting, tape edging, and packaging equipment?
A: Absolutely. The IF-PC cutting station outputs finished mattress cores with standard dimensions that interface seamlessly with conventional quilting machines, tape edge machines, and compression roll-pack systems. The conveyor height and core orientation can be customized to match the infeed requirements of your existing downstream equipment. Infinity Mattress Machinery also offers a complete mattress production line solution that integrates our pocket spring production equipment with quilting, tape edging, and packaging machines for a fully turnkey production facility.
Contact Infinity Mattress Machinery for a comprehensive production line consultation, including free layout design, ROI analysis, and machine demonstration.
