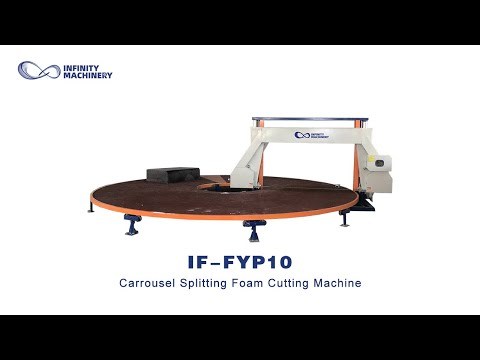

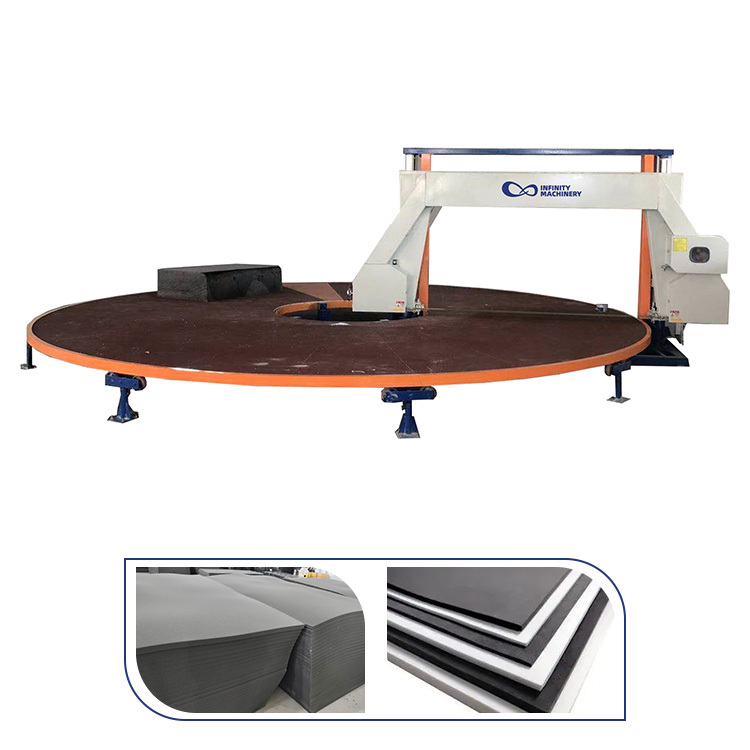

IF-FYP6/7/10 Carrousel Splitting Foam Cutting Machine

Item No.: 00140
Model: IF-FYP6/7/10
Application: Mattress Foam
Brand Name: Infinity Machinery
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set
Price Term: FOB, C&F, CIF (optional)
Time of Delivery: 7~15 working days
Quantity
-
+
Description
Description

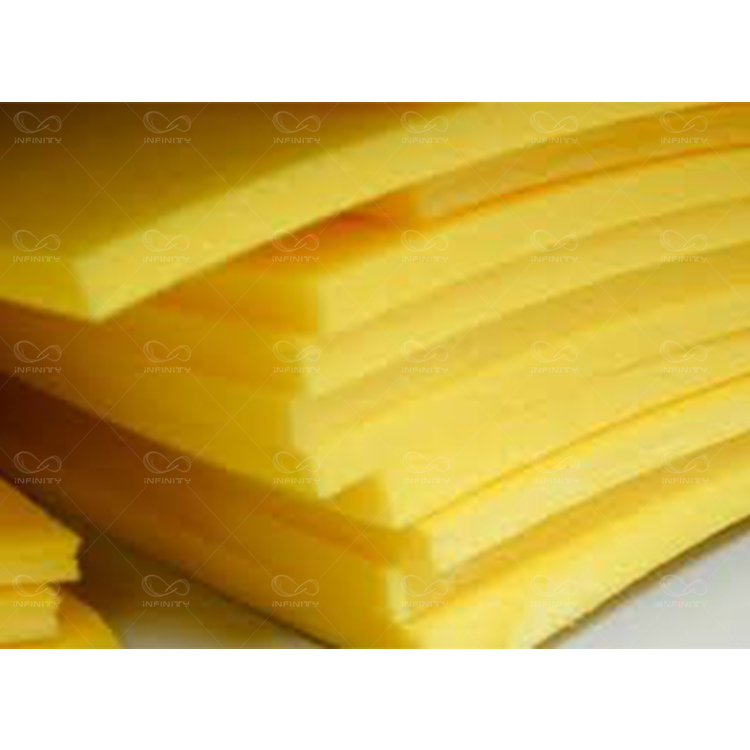

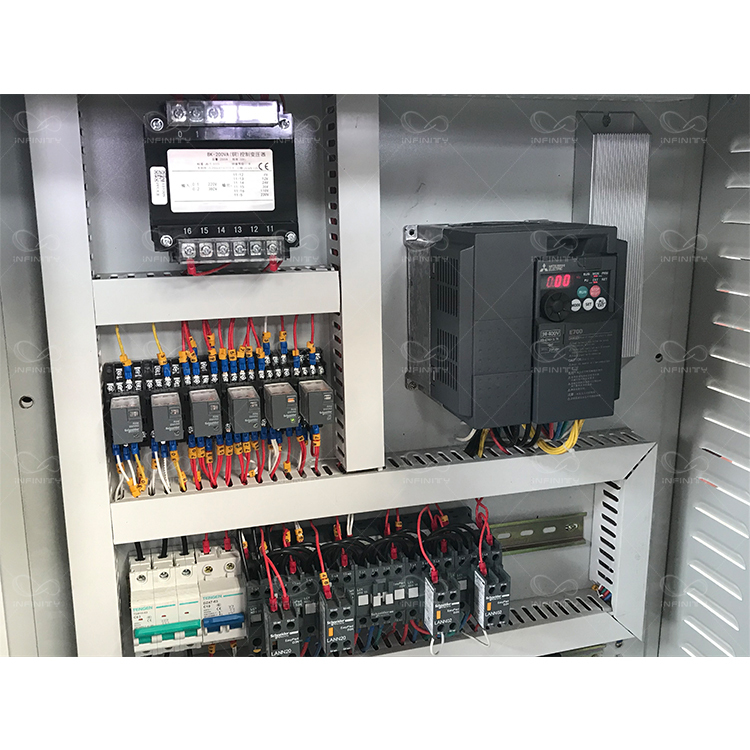

IF-FYP6/7/10 Carrousel Splitting Foam Cutting Machine is mostly put many block foam on the worktable for cutting slices at the same time. Using fully automatic digital control, by setting the value of the control box to cut the required sponge thickness.

►The worktable runs automatically and the rotation speed is adjustable, so that the production efficiency is higher with high cutting precision.

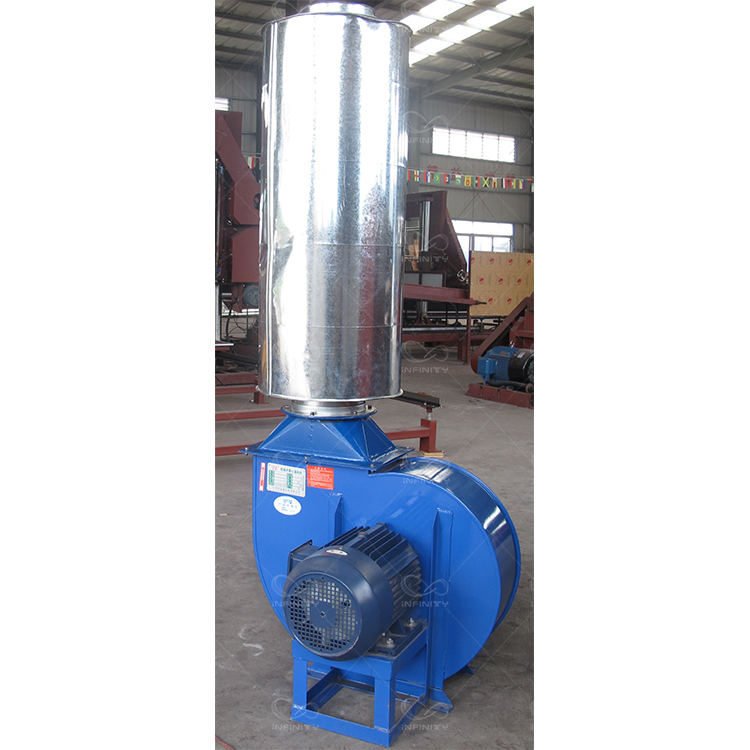

►Options of a vacuum device will be provided which can hold the foam firmly in place and and give better cutting results. We also offer two blades to choose from, which ensure safety and better cutting of soft foams.


Technical Specification

Model IF-FYP6 IF-FYP7 IF-FYP10

Cutting sponge size

L2000 * W1500 * H1200mm(4pcs)

L2000 *W1500 * H1200mm(5pcs)

L2000 * W1500 * H1200mm (8pcs)

Cutting sponge thickness

2-150mm

2-150mm

2-150mm

Worktable turning speed

0-3.5r/min

0-3.5r/min

0-2.5r/min

Worktable diameter

®6m

®7m

®10.5m

Blade length

8940mm

10000mm

10380mm

Total power

8.92kw

8.92kw

10.52kw

Machine external size

L7000 * W6500 * H2500mm

L7500 * W7000 * H2500mm

L11500 * W11000 * H2500mm


Product Feature
  Various table diameters are available for optimal utilization of the machine
  Main motor is stable and noiseless
  Rotation speed is adjustable
  Precise and efficient cutting tools
  Accurate cutting results

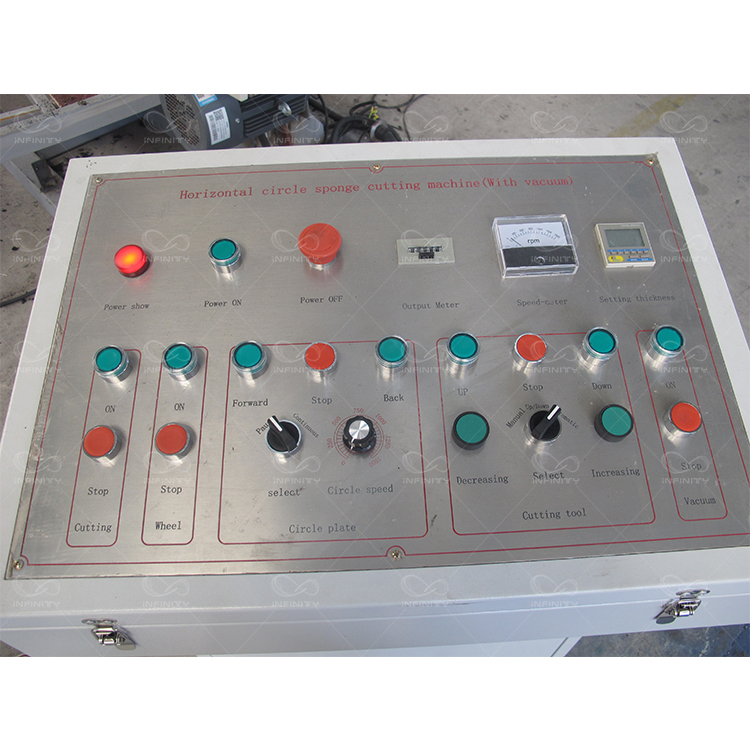

  Highly accurate digital thickness control equipment

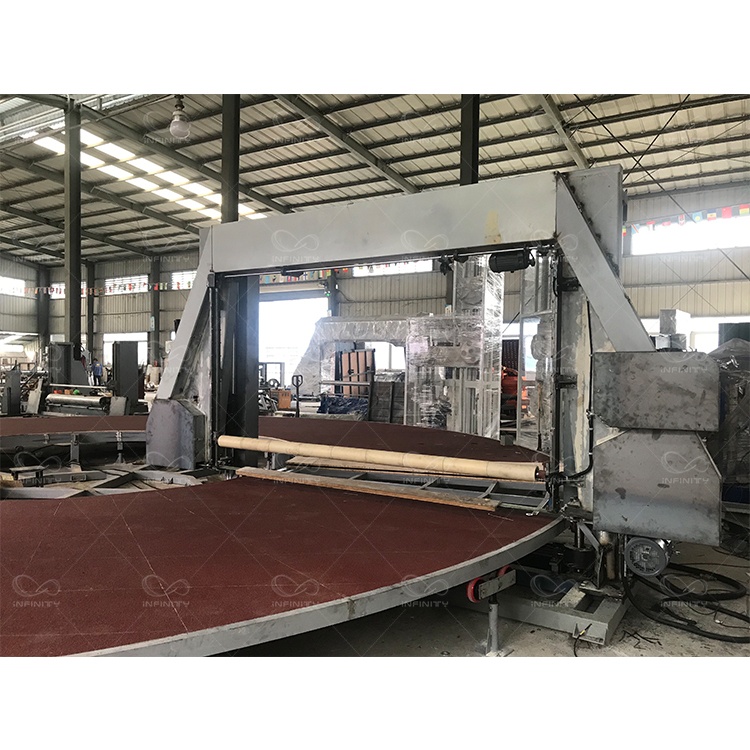

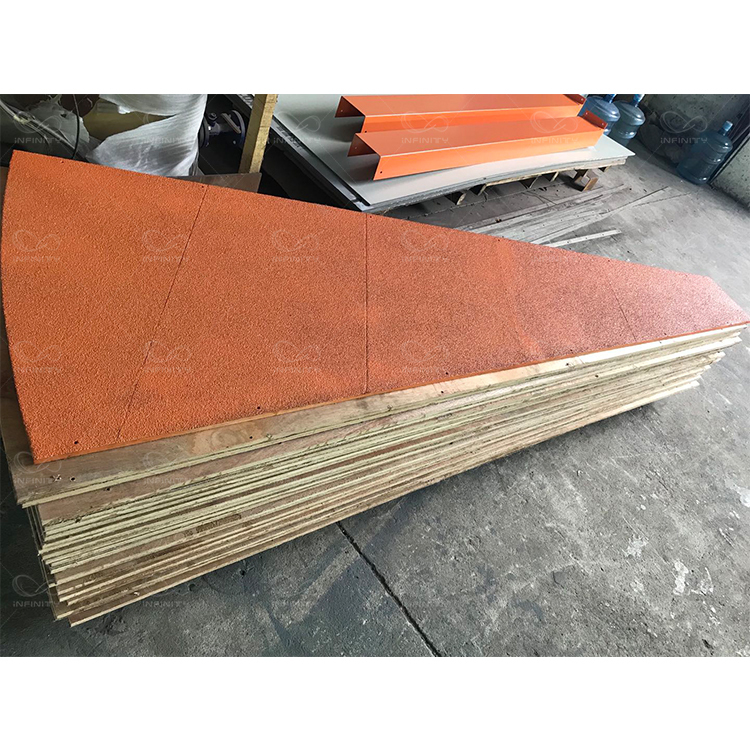

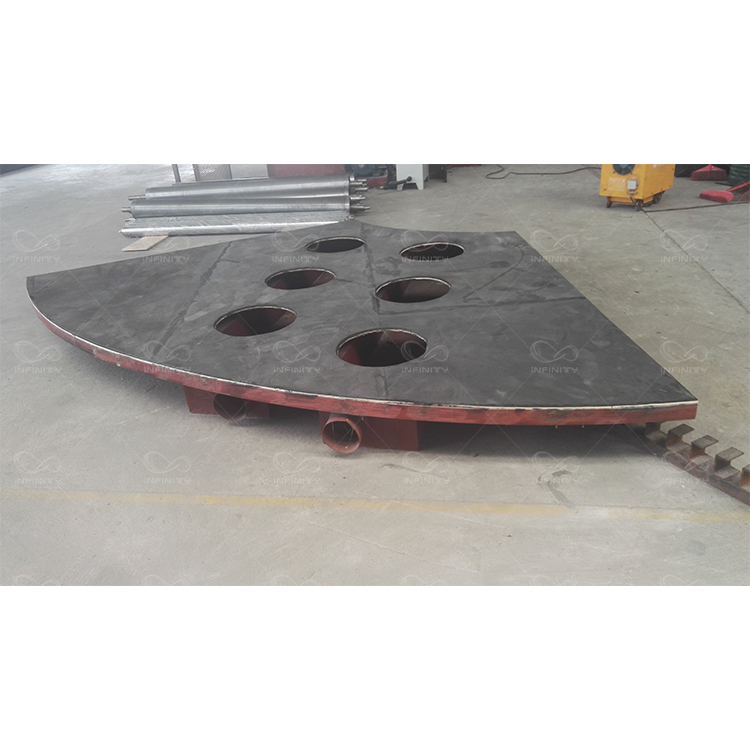

  Specially designed carousel type cutting table
  Cutting with high precision
  Less movement of the material
  High production speed and easy operation
