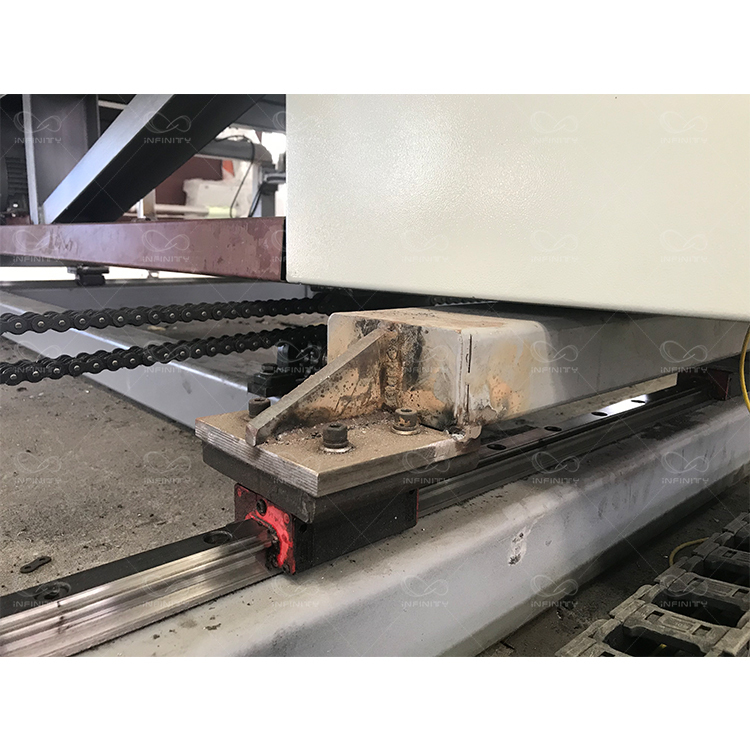

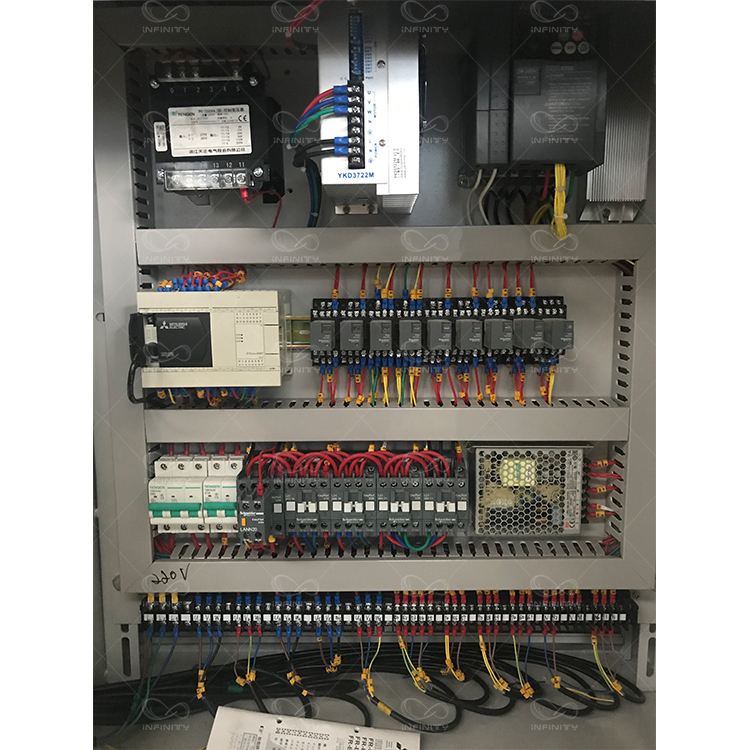

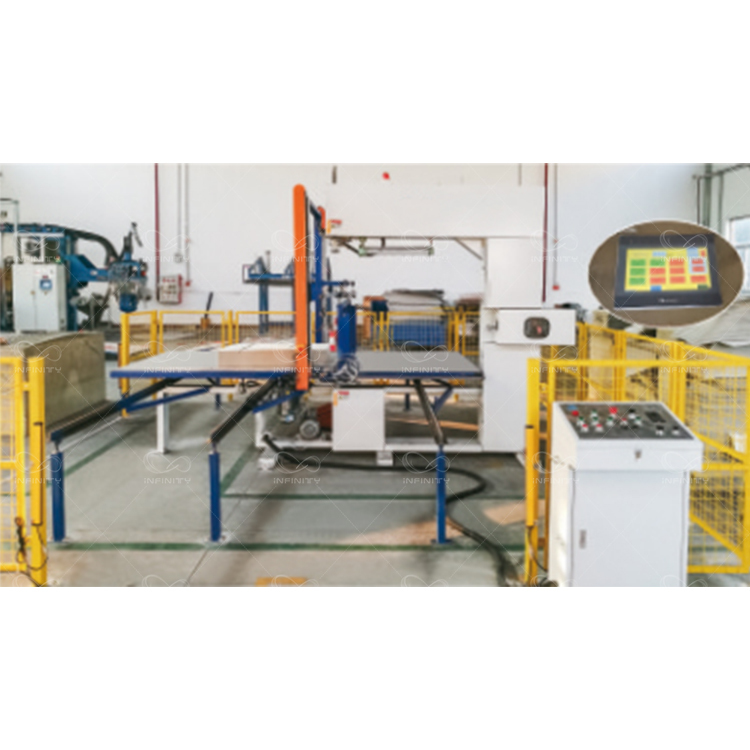

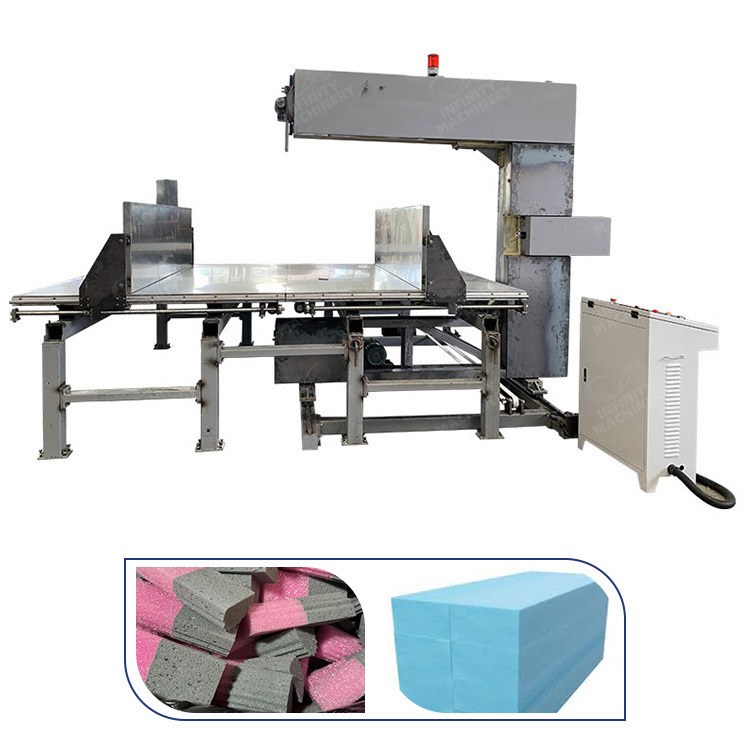

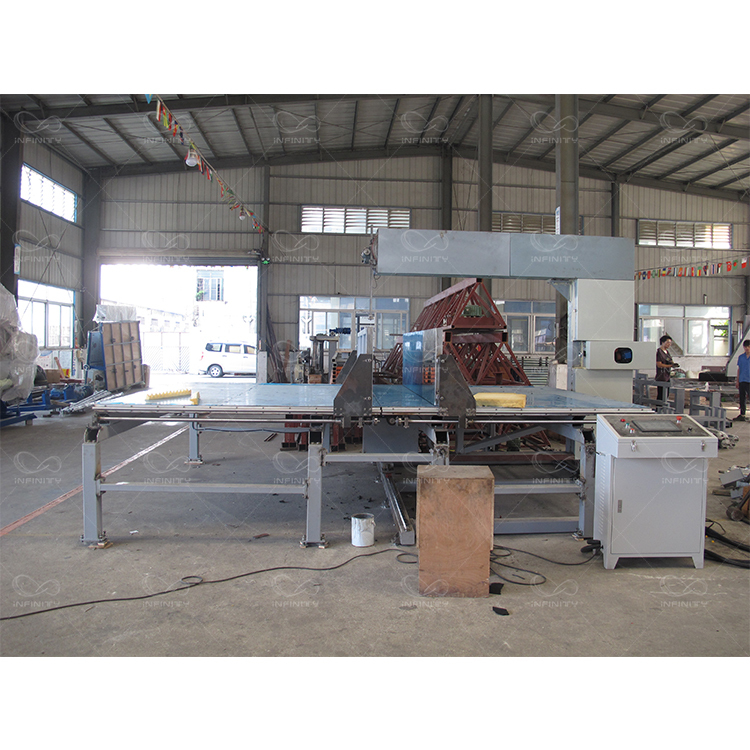

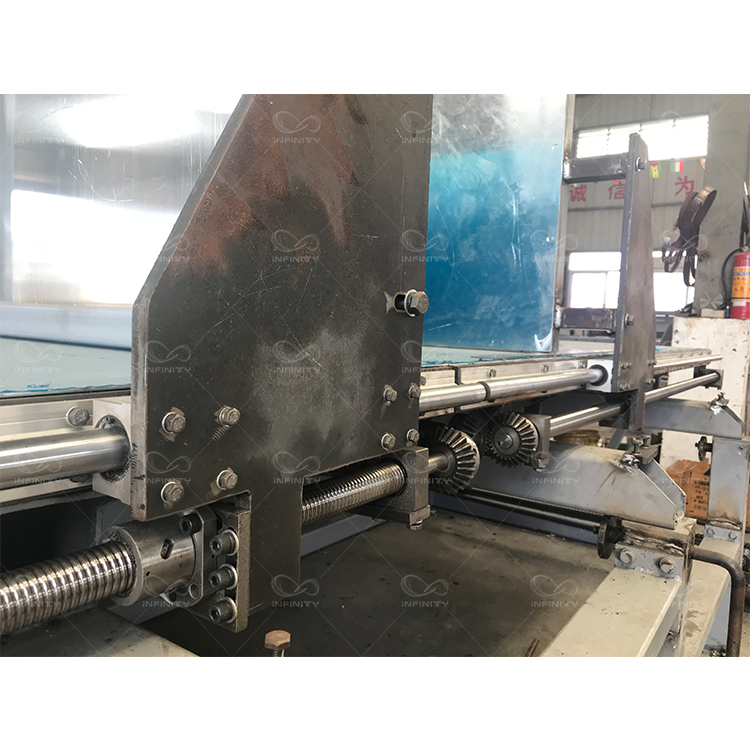

►The automatic vertical sponge cutting machine adopts the automatic digital control system, the worktable can cut the sponge back and forth automatically.

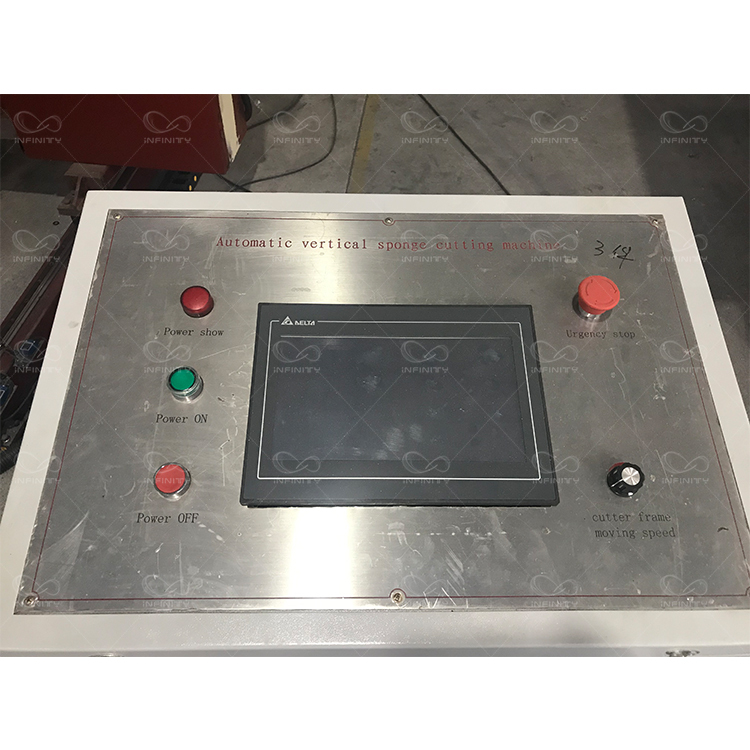

► Workers can adjust the thickness of the sponge and the height of the blade by operating the control box.

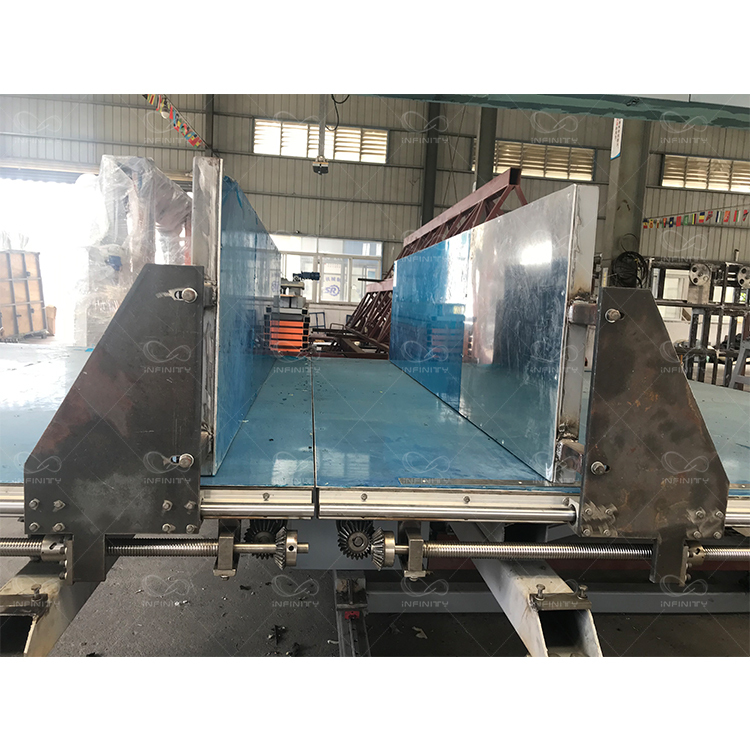

► What’s more, the machine also has the pressing system, which can prevent the foam from moving while the machine is working. The Precision is high, and it’s easy to operate for the workers.
| Model | IF-FZQ |
|---|---|
| Inner dimension of the worktable | L2440*W1700mm |
| External dimension of the worktable | L2440*W1700mm |
| Height of the cutting sponge | H1200mm |
| Thickness of the cutting sponge | 2mm |
| Length of the blade | 9720mm |
| Moving speed | 0-30m/min |
| Baffle speed | 0-10m/min |
| Total power | 4.92KW |
| Boundary dimension | L2600*W4500*H2550m |
