IF-FZS1/2 Re-Bonding Foam Machine(With Steam)
IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam) IF-FZS1/2 Re-Bonding Foam Machine(With Steam)

IF-FZS1/2 Re-Bonding Foam Machine(With Steam)

Item No.: 00144
Model: IF-FZS1/2
Application: Mattress Foam/ Re-Bonding Foam
Brand Name: Infinity Machinery
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set
Price Term: FOB, C&F, CIF (optional)
Time of Delivery: 7~15 working days
Quantity
-
+
Request Quote
Description
Description

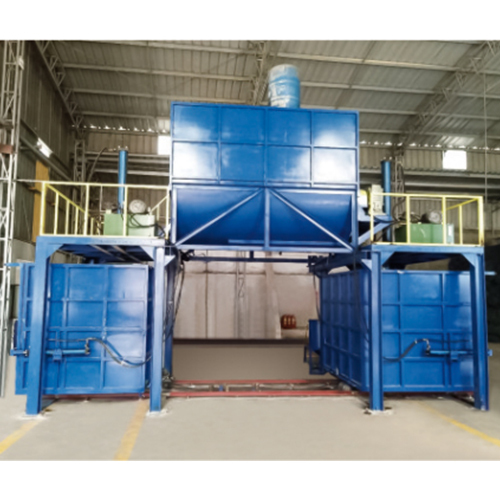

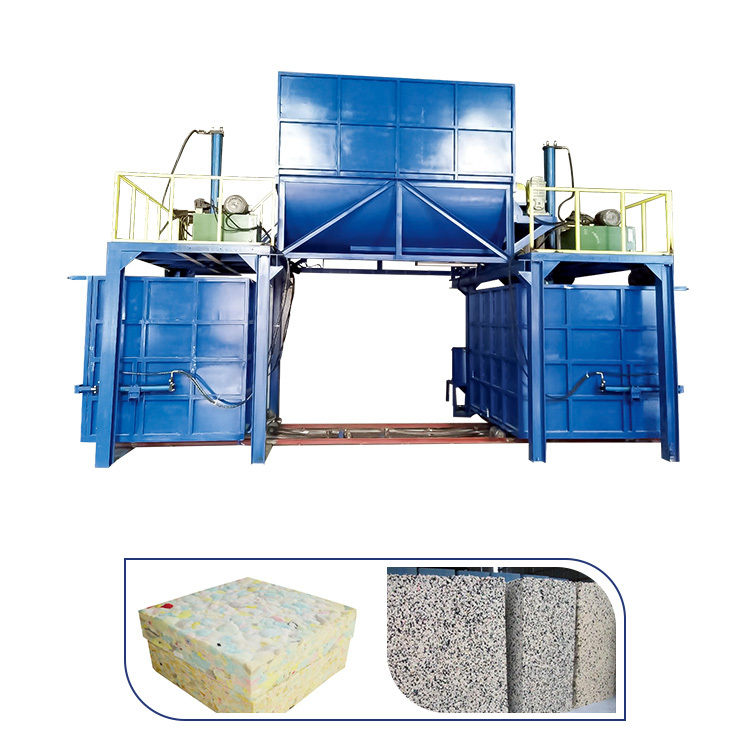

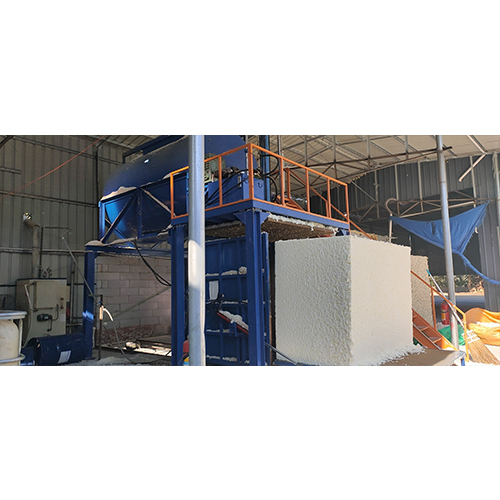

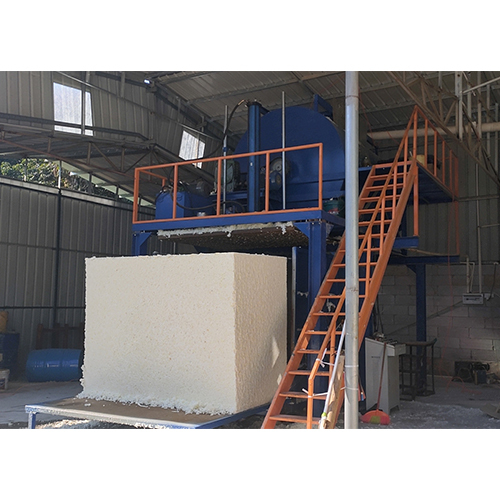

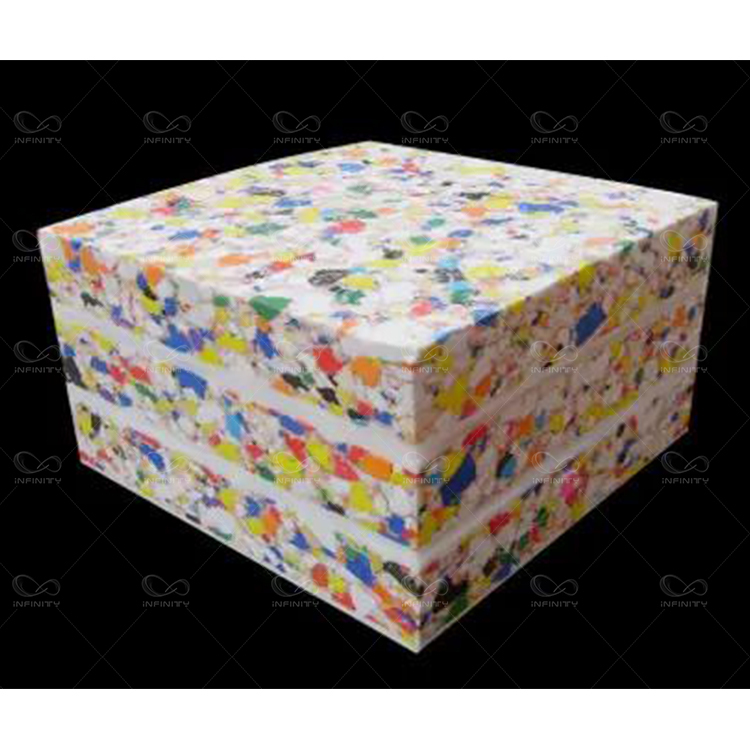

►Re-Bonding Foam Machine is mainly used for the stirring of the crushed foam with glue, and through the Foaming mould, the regenerated foam of the required density is compressed through the hydraulic system.

►The machine is a full set production line with function of stirring, mixing and pressure forming, with high production efficiency.

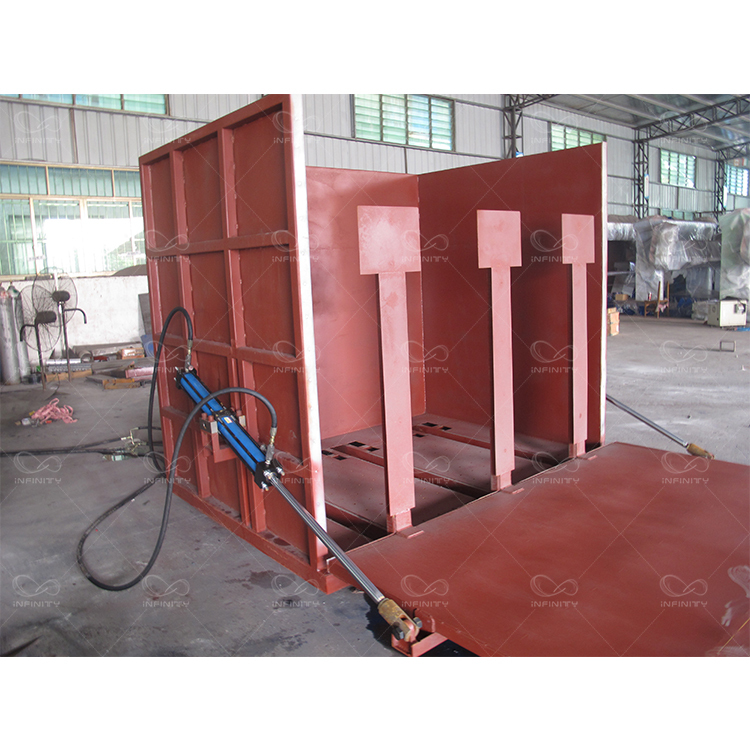

►The latest developed fully automatic mould with steam device can greatly increase production efficiency by 6-8 times. It is the best choice for the customers who pursuing high output.


Technical Specification
Model

IF-FZS1

IF-FZS2
Mixing box cubage 12m² 12m²
Mixing speed 40r/min 40r/min
Total power 16.5KW 27.5KW
Moulding size L2050×W1550xH1850mm(1pc)automatic L2050×W1550xH1850mm(1pc)automatic
L2050×W2050xH1850mm(1pc)automatic
Machine external size L6000×W3600×H4800mm L10000mm×W3600×H4800mm


Product Feature

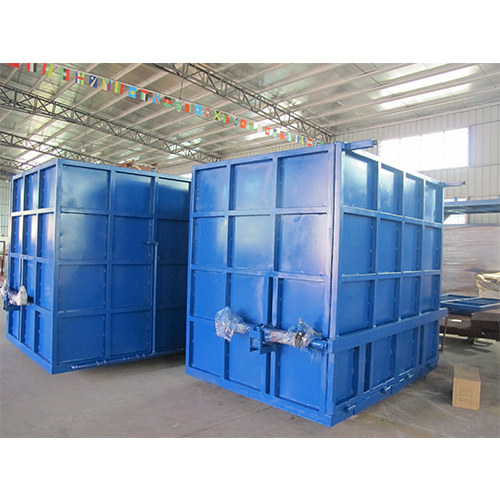

√  Fully automatic mould system
√  High production efficiency
√  6-8 times faster than normal device
√  Small cover area
√  Latest steam system
√  Advanced mixing drum and glue spray system

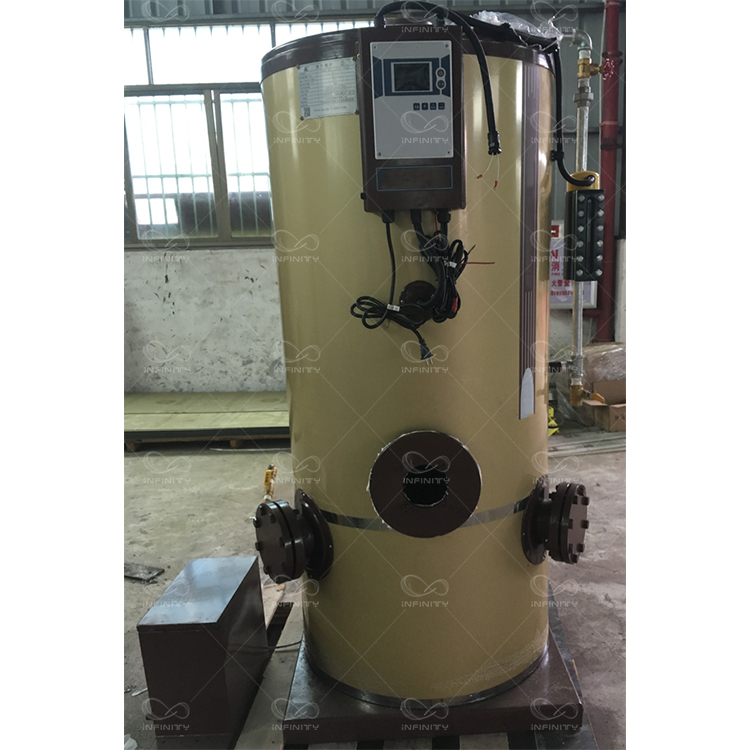

√  High quality boiler (option)
√  With PLC and touch screen
