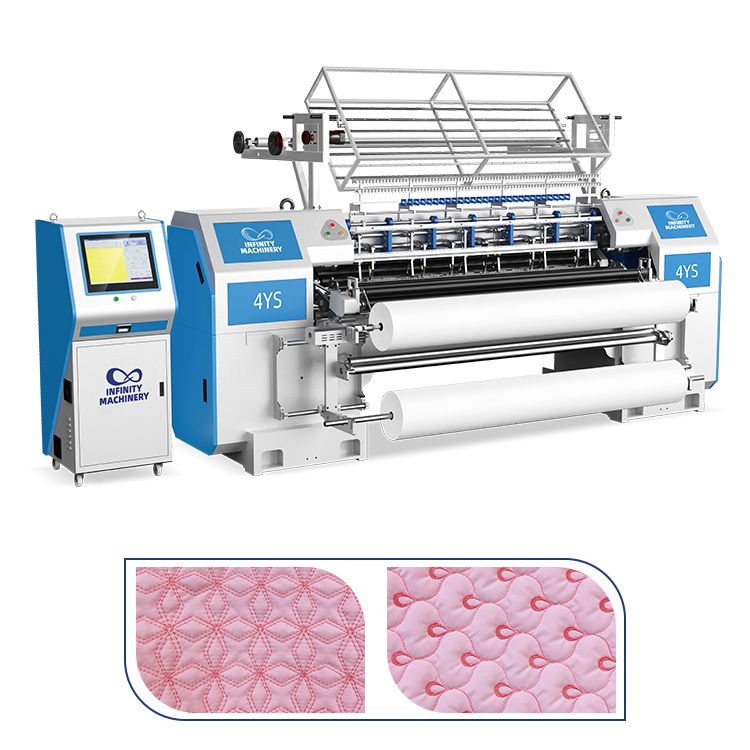

IF-QM1-4 Automatic Lock Stitch Quilting Machine

Name: IF-QM1-4 Automatic Lock Stitch Quilting Machine
Brand: Infinity Mattress Machinery
SKU: 00147
Availability: InStock
Rating: 5 (1 reviews)

No.00147

Model: IF-QM1-4
Application: Quilting
Brand Name: Infinity Machinery
Place of origin: Guangzhou city, China
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set Price
Packaging Details: Film Packing/ Wooden
Term: FOB, C&F, CIF (optional)
Payment Terms: L/C T/T
Time of Delivery: 10~20 Working Days

GET A QUOTE

Description

Model: IF-QM1-4 (128’’)
Dimension: 5300×5210×2450mm
Quilting width: 3300mm
Space between needle rows: 76.2+76.2mm
Space between needles: 25.4mm
Max horizontal movement: 304.8mm
Quilting thickness: ≤30mm
Stitch length: 2-7mm
Production speed: 60-130m/h
Needle type: 14#- 21#
Main shaft speed: 500-900rpm
Gross weight: 3800kg
Power: 5.5KW
Voltage: 380V 60Hz 3Phase or customize

Products Description

It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision, and the production speed is fast.

Technical Characteristics

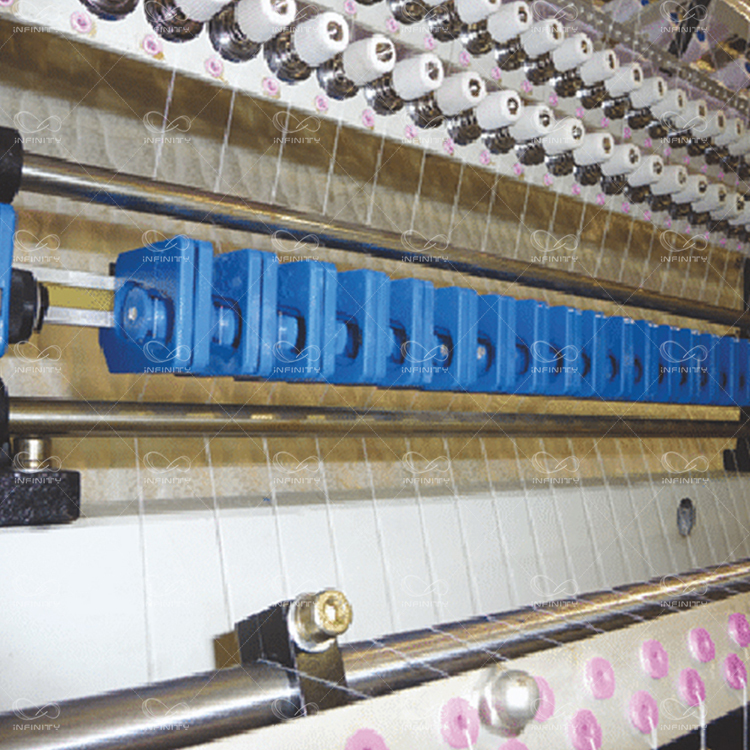

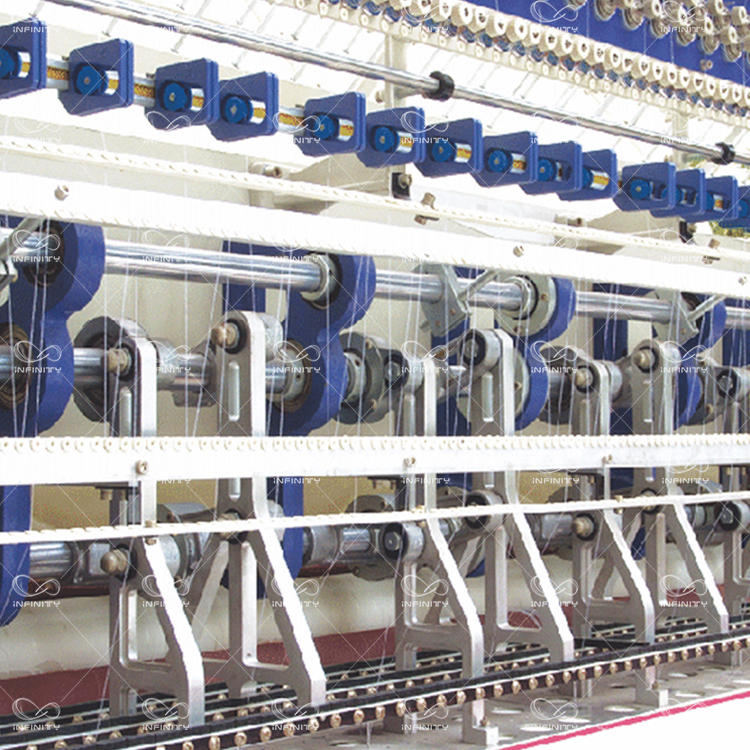

1. Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
2. High rigidity machine body and structure can make the machine running faster and more stable.
3. Adopting the new structure of press plate's adjusting makes the machine much simple.
4. Multi-span independent pattern (360°and 180° patterns are available)
5. Advanced and practical up thread-break detection unit
6. Computerized automatic needle-lifting speed adjustment
7. New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting
8. Easy preparation of CAD drawing extremely precise
9. Different patterns in each line can be quilted on 3.2 m fabric and patterns can strongly combine
10. Able to quilt simple embroidery patterns
11. Fault detection function for ease of determining the running state of the machine at any given time;
