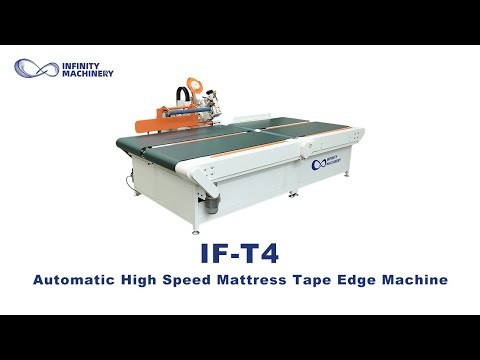

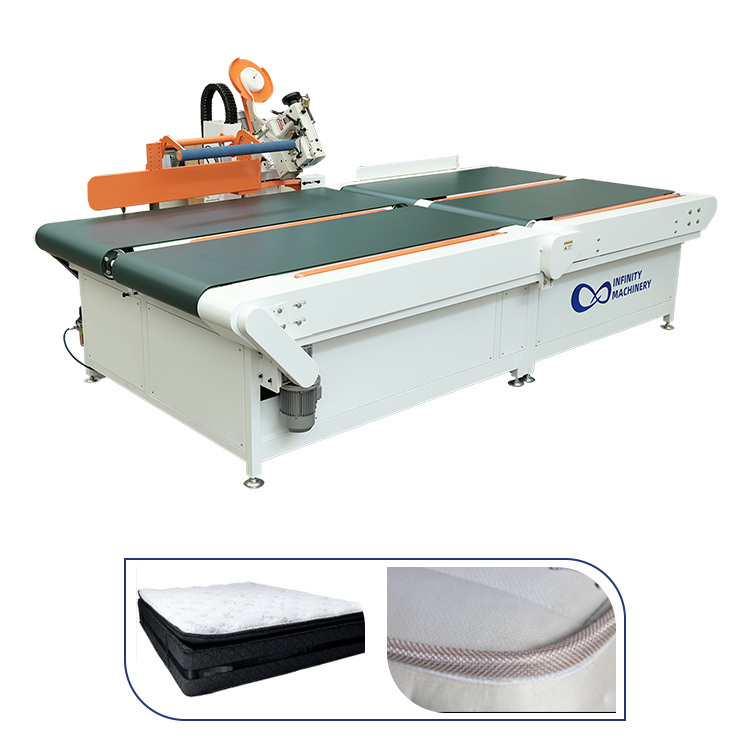

IF-T4 Automatic High Speed Mattress Tape Edge Machine

No.00167
Model: IF-T4
Application: Mattress Sewing
Brand Name: Infinity Machinery
Place of origin: Guangzhou city, China
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set Price
Packaging Details: Film Packing/ Wooden
Term: FOB, C&F, CIF (optional)
Payment Terms: L/C T/T
Time of Delivery: 10~20 Working Days
GET A QUOTE
  • IF-T4 Automatic High Speed Mattress Tape Edge Machine
  • IF-T4 Automatic High Speed Mattress Tape Edge Machine
  • IF-T4 Automatic High Speed Mattress Tape Edge Machine
  • IF-T4 Automatic High Speed Mattress Tape Edge Machine
  • IF-T4 Automatic High Speed Mattress Tape Edge Machine
  • IF-T4 Automatic High Speed Mattress Tape Edge Machine
  • IF-T4 Automatic High Speed Mattress Tape Edge Machine
  • IF-T4 Automatic High Speed Mattress Tape Edge Machine
Description

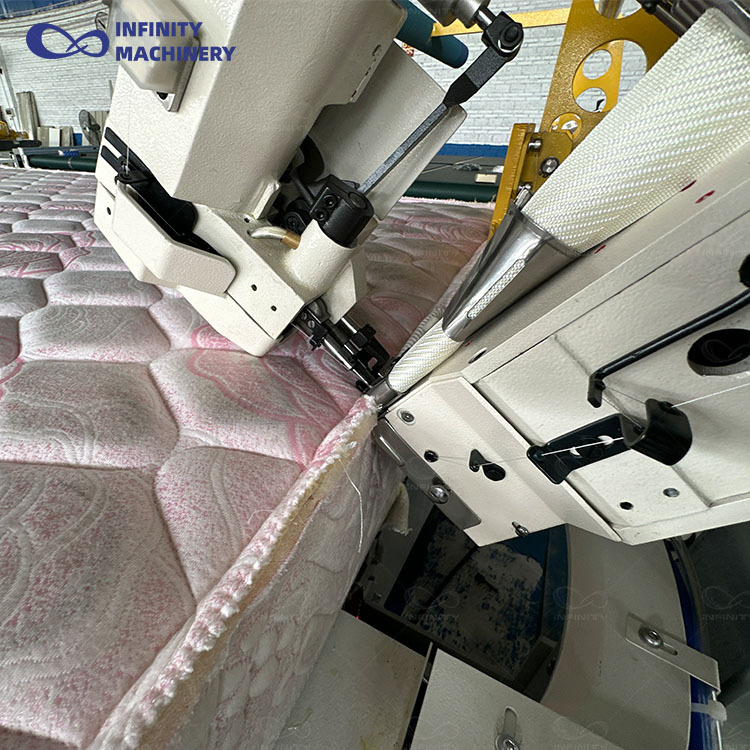

►IF-T4 Automatic High Speed Mattress Tape Edge Machine it’s totally automatic and used for tape edge mattress panel and soft cushion with a spacious workbench and high speed chain stitch sewing head.

►IF-T4 Automatic High Speed Mattress Tape Edge Machine can automatically rotate and automatically flip the mattress. The operator does not need to walk around the machine. The sewing head is fixed, thus improving efficiency and reducing labor intensity

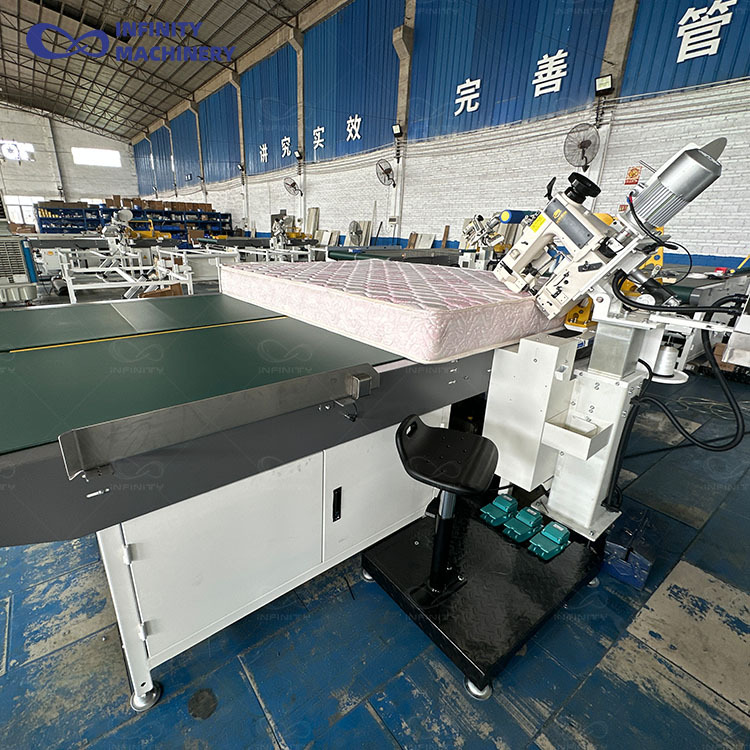

►The head can move up and down to adapt to different height of mattress. The obliquity of the head is adjustable. When IF-T4 Automatic High Speed Mattress Tape Edge Machine is working, the conveying belt drives the mattress to proceed. And after one side is finished, the machine can swerve 90°.
Technical Specification
Model IF-T4
Productivity
18-20pcs/h
Mattress thickness
 150-450mm
Table lifting range
 0-400mm
Table size 2000*3950*900mm
Machine size 2380*1830*1650mm
Motor type 3-Phase,  220V/380V,  50-60HZ (can be customized)
Total power 4KW
Weight 1600KG

Product Feature

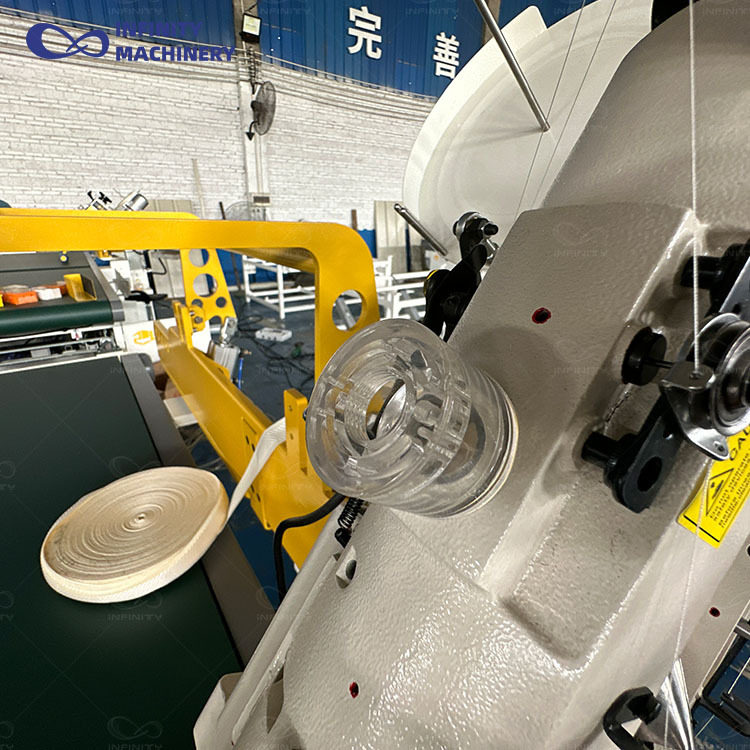

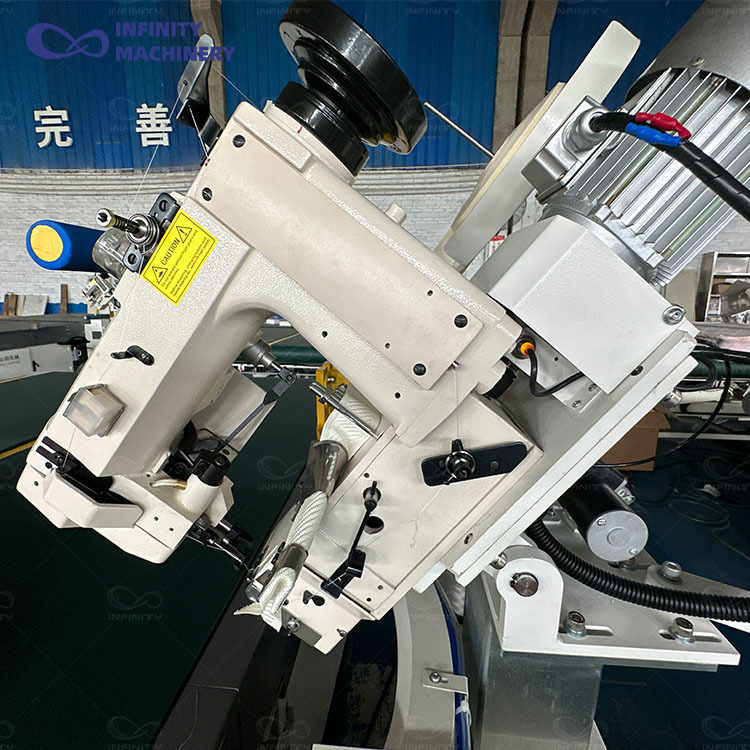

√  With high quality chain stitch head
√  Totally automatic easy operate
√  Adjustable head can move up and down to adapt to different height of mattress.

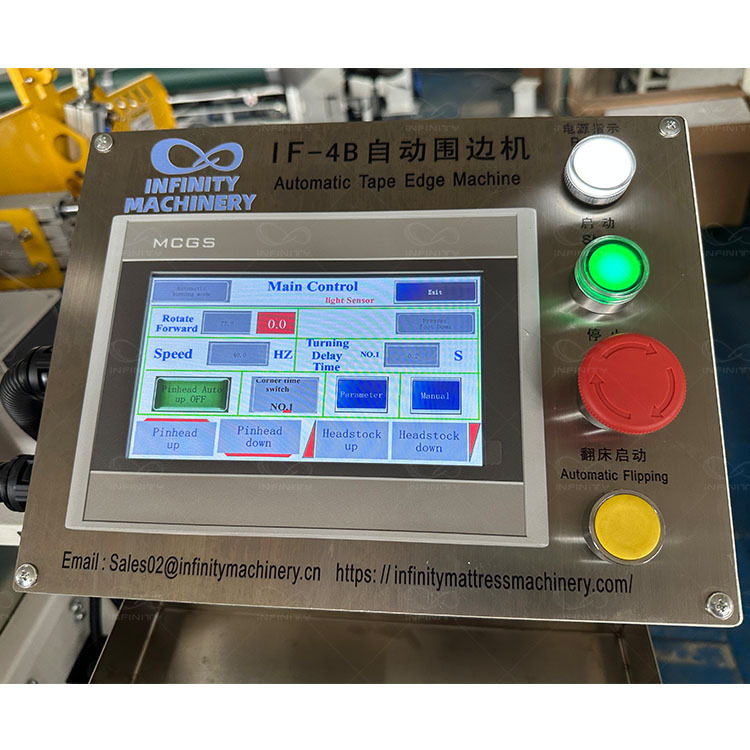

√  Adopt PLC program control and artificial intelligence operation
√  Automatic conveyor belt drives the mattress forward, and when one side is finished, automatically turn the mattress to 90°
√  Automatically slows down at turn position
√  Robotic arm replaces manual movement and turning of mattresses
√  Aesthetic and straight suture
√  High efficiency and less labor
√  Work table size can be custermized

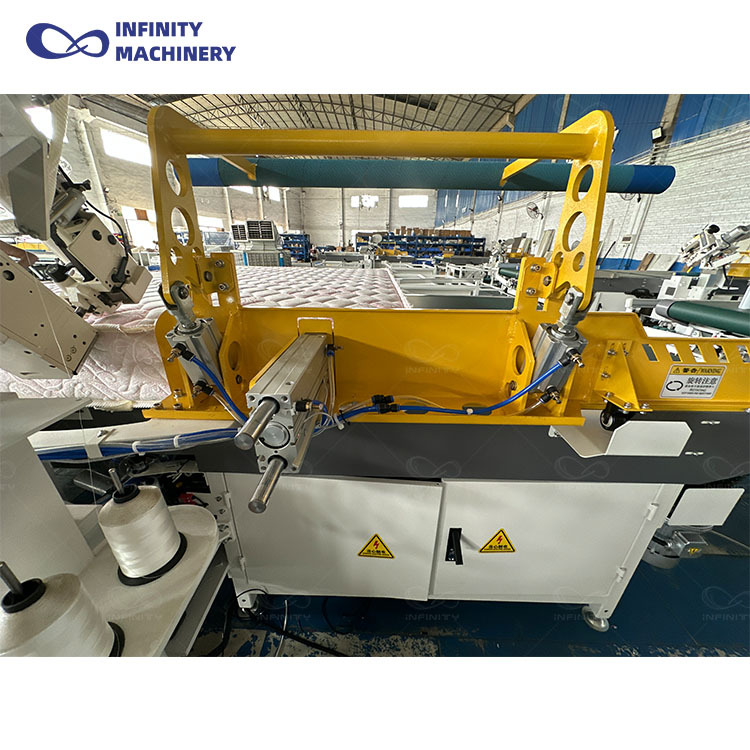

√  The patented compression and turning devices built into the machine bring the mattress to the sewing head
