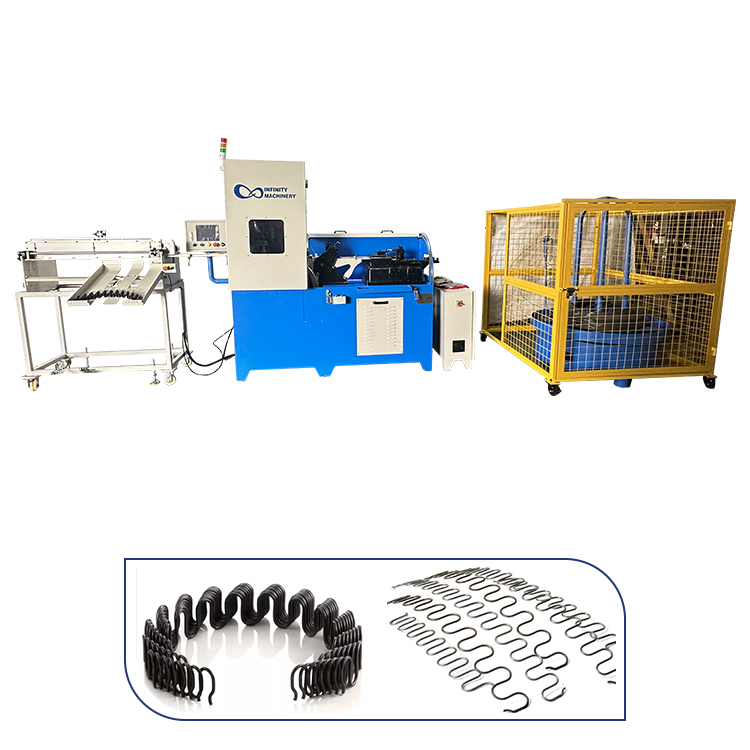

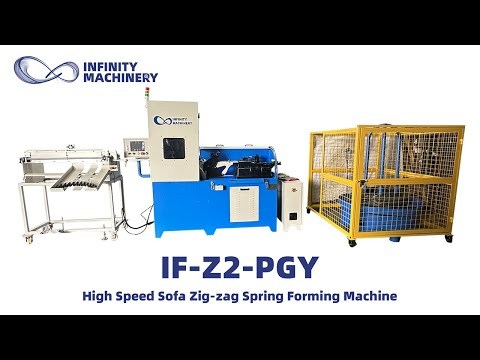

► IF-Z2-PGY sofa zig-zag spring forming machine is a high speed spring making machine based on the market demand. It can produce the special spring for the sofa, which is a basic requirement for making sofas.
► The work efficiency of this machine can be 300-500 peaks, and it’s very easy to operate. When the machine is working, the noise is low, and it’s easy to maintain the machine.
| Model | IF-Z2-PGY |
|---|---|
| Work efficiency | 300-500 peaks/min |
| Wire diameter | Φ3.5-4.2mm |
| Width of the peak | 24-36mm |
| Height of the peak | 45-50mm |
| Power supply | 10KW |
| Weight | 1000KG |
| Dimension of the machine | 7000*1250*2000mm |

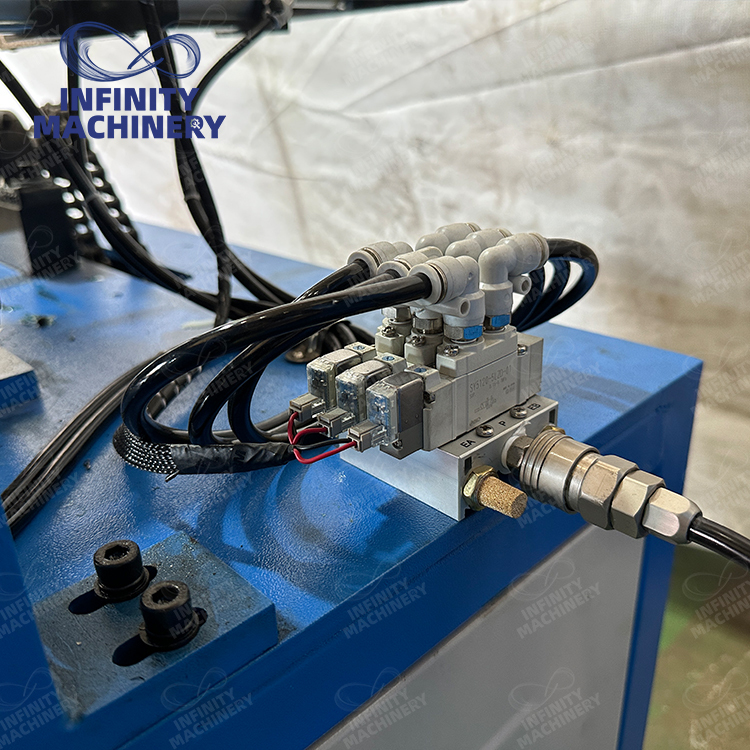

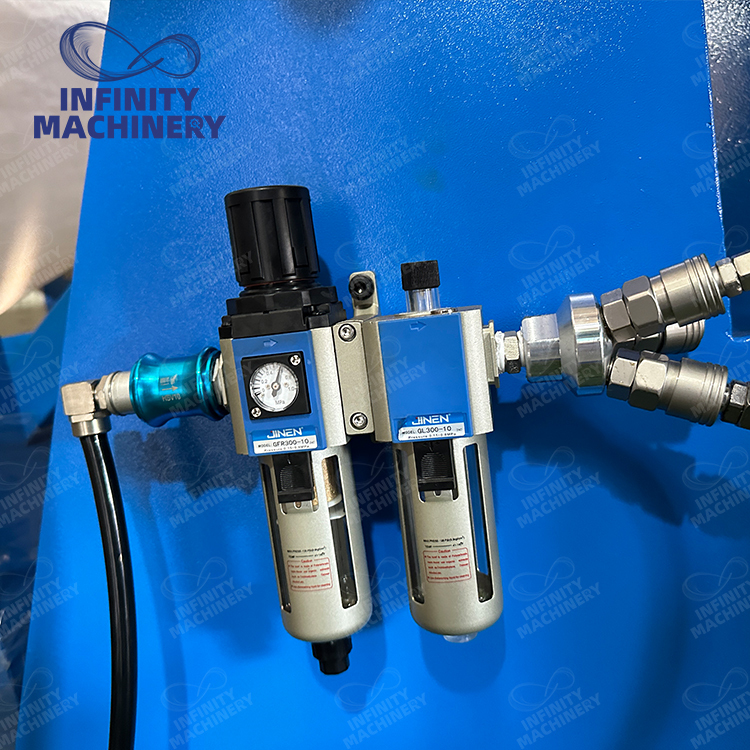

| Air Source | 0.5-0.8MPa |
| Displacement | Less than 0.13m³/min |

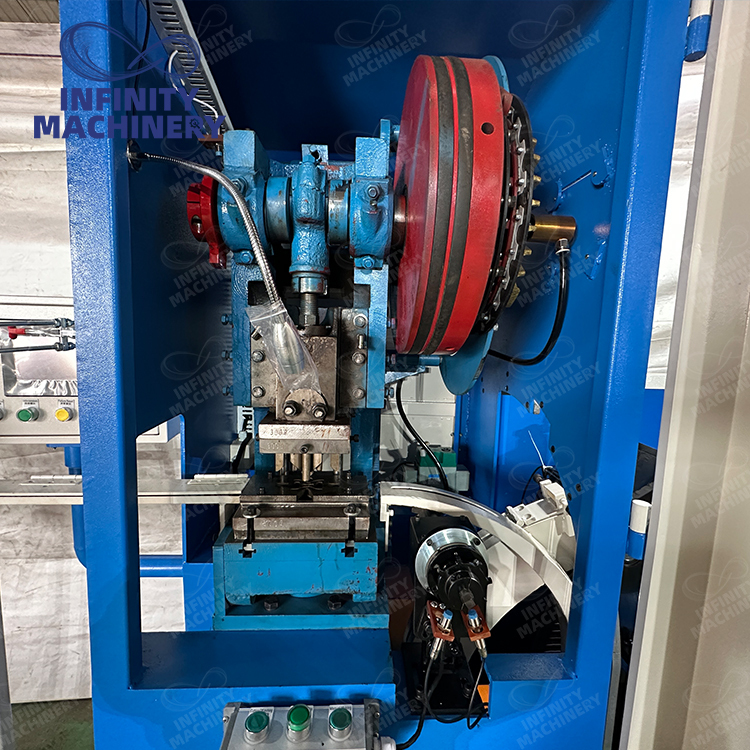

| Punching Machine Power | 0.75KW |
| Tonnage of the Punching Machine | 8T |
| Weight | 2800KG |
√ High speed, high efficiency

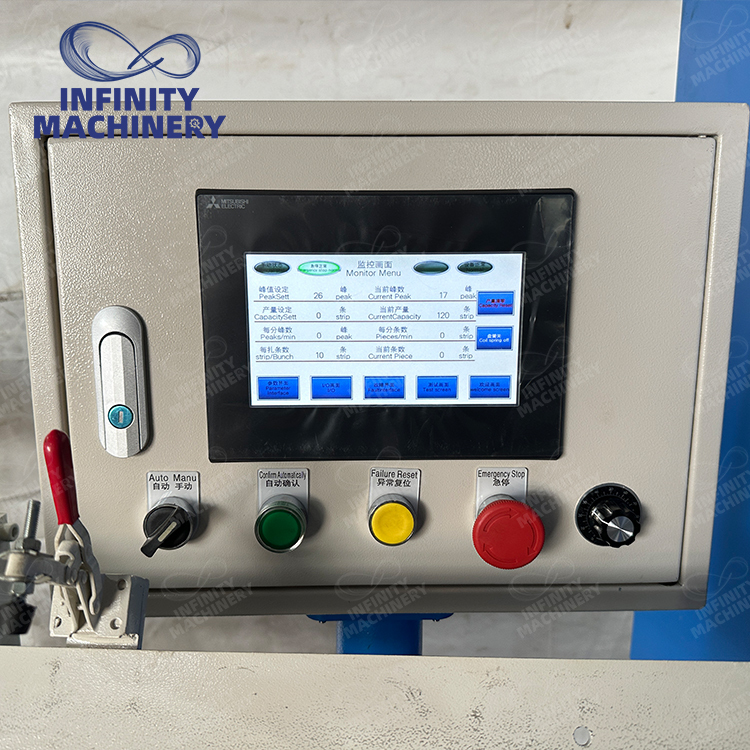

√ Simple operation
√ Low noise
√ Easy to maintain the machine

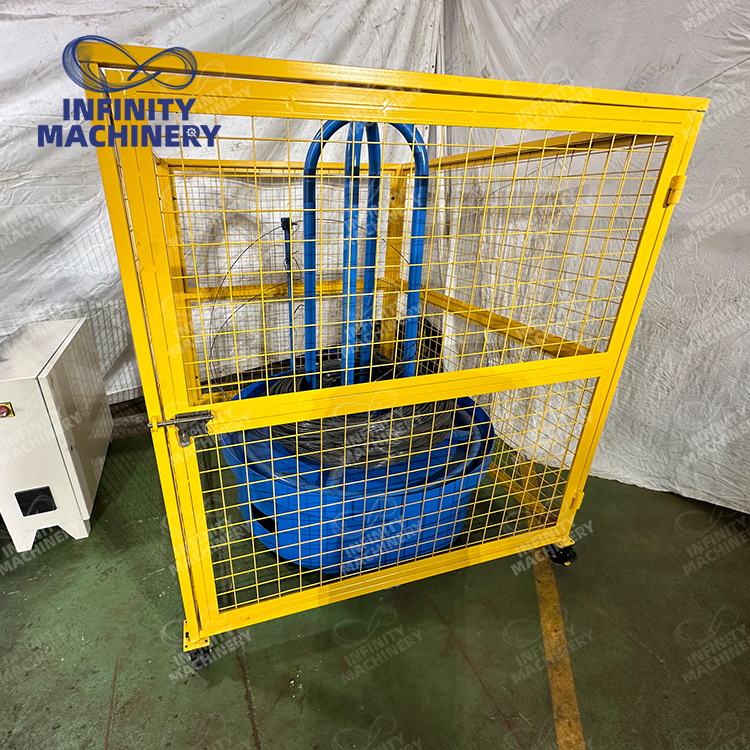

√ Special protective device
